EV35-4.0-02-5M0

$3.49

Description：CMC 5MH 4A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:83471d0c400d Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5MH 4A 2LN TH
Series：EV
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：53mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max)：1.681" (42.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5 mH @ 10 kHz

Download product information

EV35-4.0-02-5M0

Overview

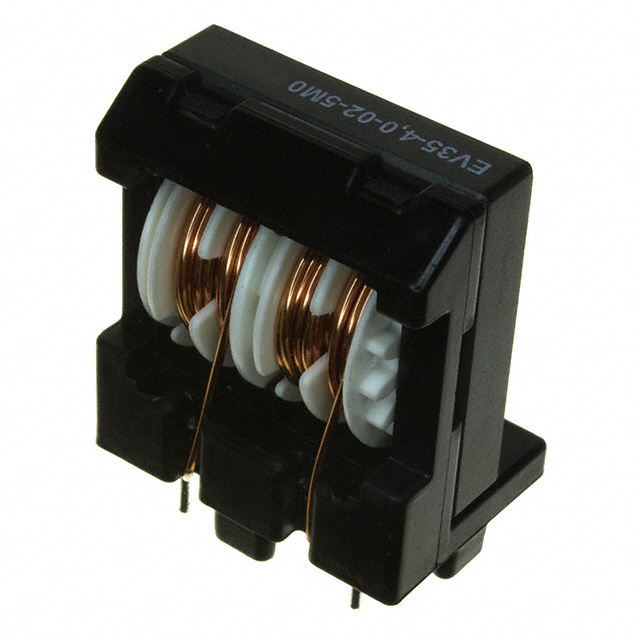

The Schaffner EV35-4.0-02-5M0 is a through-hole common mode choke designed for power line applications. It features an inductance of 5 mH and supports a current rating of 4 A. The component operates effectively at frequencies starting from 10 kHz. Its vertical mounting configuration facilitates integration into various electronic assemblies requiring electromagnetic interference suppression.

Feature Summary

Provides common mode noise suppression for power lines
Designed for through-hole vertical mounting
Suitable for use in power supplies and battery chargers

Applications

Power supplies
Battery chargers
Portable devices
Energy-efficient systems

Procurement Notes

Verify the exact part number EV35-4.0-02-5M0 against official Schaffner documentation to ensure compatibility with specific design requirements. Confirm that the 5 mH inductance and 4 A current ratings align with the target application's electrical specifications before procurement.

Selection Notes

Select this component when a 5 mH common mode choke is required for through-hole assembly. Ensure the PCB layout accommodates the vertical form factor. Verify that the 4 A current handling capacity meets the circuit demands without saturation issues under operating conditions.

Part Context

This component belongs to the Schaffner EV35 series of common mode chokes. These components are engineered for electromagnetic interference suppression in power circuits. The series offers various inductance values and current ratings to suit different power line filtering needs across industrial and consumer electronics.
