EV35-5.0-02-3M6

Overview

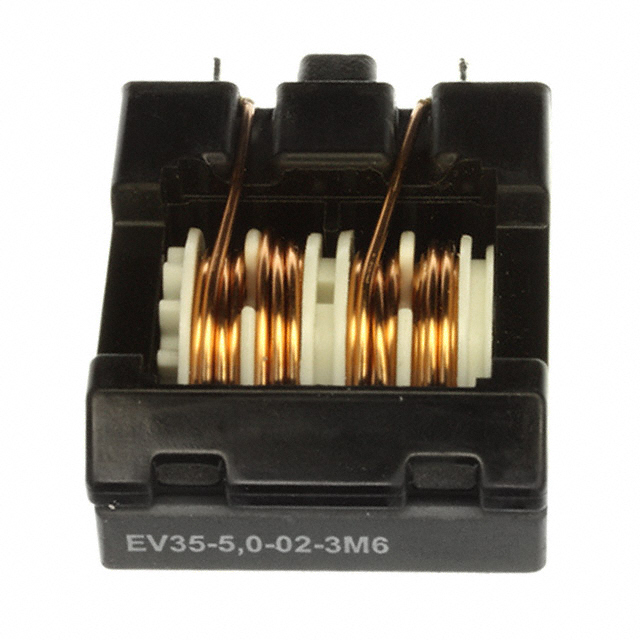

The Schaffner EV35-5.0-02-3M6 is a common-mode suppression choke designed for through-hole mounting. It features a nominal inductance of 3.6 mH and supports a maximum current rating of 5 A. The component is configured for two-line applications, suitable for filtering noise on AC power lines and suppressing electromagnetic interference in electronic systems.

Feature Summary

• Provides common-mode noise suppression for two-line circuits
• Designed for through-hole installation on printed circuit boards
• Supports rated currents up to 5 A for power line filtering

Applications

• Power supply noise filtering
• Battery charger EMI suppression
• Portable device electromagnetic interference reduction

Procurement Notes

Verify the exact part number EV35-5.0-02-3M6 against manufacturer datasheets to confirm inductance and current ratings. Ensure compatibility with through-hole PCB layouts and operating temperature ranges before integration into final designs.

Selection Notes

Select this component for applications requiring common-mode chokes with a 3.6 mH inductance and 5 A current capacity. Consider its two-line configuration and through-hole package when designing PCB layouts for power supplies or portable electronics needing EMI suppression.

Part Context

This component belongs to the EV35 series of common-mode chokes manufactured by Schaffner EMC Inc. These devices are engineered for general-purpose electromagnetic interference suppression in low-to-medium current applications, typically found in consumer electronics and industrial control systems.

Replacement Considerations

Publicly confirmed substitute part numbers for EV35-5.0-02-3M6 were not identified in available documentation. Verify electrical parameters such as inductance, current rating, and physical dimensions when evaluating alternative components from other manufacturers.
