EXC-24CD201U

Common Mode Chokes Overview

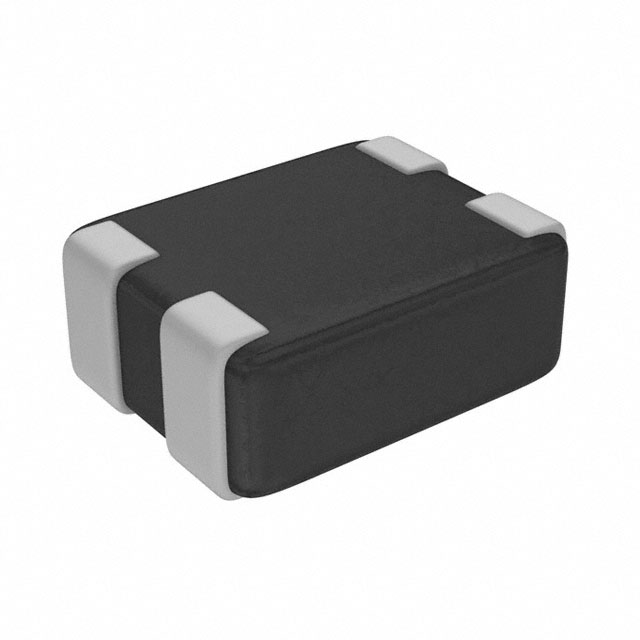

The EXC-24CD201U is a common mode noise filter manufactured by Panasonic Electronic Components. It features a single channel configuration with an impedance of 200 Ohms and a tolerance of 25%. The component supports a maximum DC current of 130 mA and has a maximum DC resistance of 2.7 Ohms. It operates within a temperature range of -40°C to +85°C. The device utilizes SMD/SMT termination and is housed in a 0504 (1210 metric) package measuring 1.25 mm in length, 1 mm in width, and 0.5 mm in height.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for signal lines
• Designed for surface mount PCB integration
• Unshielded coupled inductor construction

Common Mode Chokes Applications

• High-speed data line noise suppression
• USB interface circuit protection
• HDMI signal integrity enhancement

Common Mode Chokes Procurement Notes

Verify the exact part number suffix against official Panasonic documentation to ensure correct impedance and tolerance specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before procurement. Ensure the selected packaging format matches production requirements.

Common Mode Chokes Selection Notes

Select this component based on its 200 Ohm impedance rating and 130 mA current handling capability. Evaluate the 0504 footprint dimensions for board space constraints. Consider the unshielded design characteristics when assessing electromagnetic interference susceptibility in the target application environment.

Common Mode Chokes Part Context

This component belongs to the EXC series of common mode chokes from Panasonic. It serves as a passive electronic component designed to suppress electromagnetic interference in differential signal lines. The product falls under the category of inductors, chokes, and coils within industrial electronics supply chains.

Common Mode Chokes Replacement Considerations

Cross-reference with Panasonic EXC-24CE201U for potential functional equivalence. Verify pinout compatibility and electrical parameter alignment with alternative suppliers' common mode filters before substitution.
