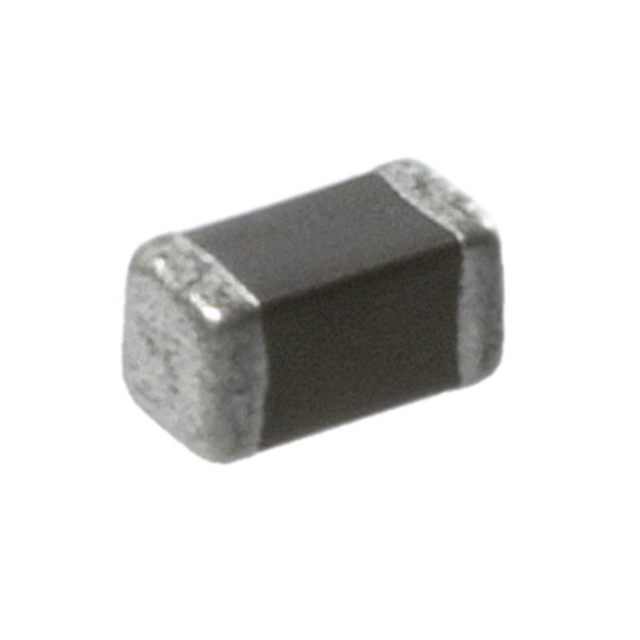

EXC-3BP600H

Chip Ferrite Bead Overview

The EXC-3BP600H is a single-line ferrite bead from the Panasonic EXC3B series, designed for high-speed signal line noise suppression. It features a 1608 (0603) metric package size with dimensions of 1.60mm x 0.80mm. The component provides an impedance of 60 ohms at 100 MHz and supports a rated current of 1 ampere. It exhibits low DC resistance and is RoHS compliant.

Chip Ferrite Bead Feature Summary

• Effective noise suppression for power lines and high speed signal lines
• Low DC resistance characteristics typical of the EXC3B type
• RoHS compliant construction

Chip Ferrite Bead Applications

• Digital equipment such as PCs, word processors, printers, HDD, PCC, CD-ROMs, DVD-ROMs
• Digital audio and video equipment such as VCRs, DVC, CD Players, DVD Players
• AC adapters and switching power supplies

Chip Ferrite Bead Procurement Notes

Verify availability status carefully as this specific part number may be obsolete or discontinued by the manufacturer. Confirm technical equivalence if sourcing substitutes. Ensure the replacement component matches the 1608 package dimensions, 60 ohm impedance profile, and 1A current rating to maintain circuit integrity in high-speed signal applications.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring compact EMI filtering on high-speed digital interfaces. The 1608 footprint allows for dense PCB layouts. Consider the 1A current rating when designing power delivery networks. Verify that the 60 ohm impedance curve aligns with the target noise frequency spectrum of the specific signal line being protected.

Chip Ferrite Bead Part Context

This component belongs to the Panasonic EXC3B series of chip bead cores. The series is engineered for low DC resistance and high impedance performance. The EXC3BP variant specifically utilizes the 1608 size to achieve higher attenuation capabilities compared to smaller packages, making it suitable for demanding noise suppression tasks in consumer electronics.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute: BLM21PG600SN1D. Verify that the alternative maintains identical impedance, current handling, and physical dimensions before integration.
