EXC-ELDR35C

Chip Ferrite Bead Overview

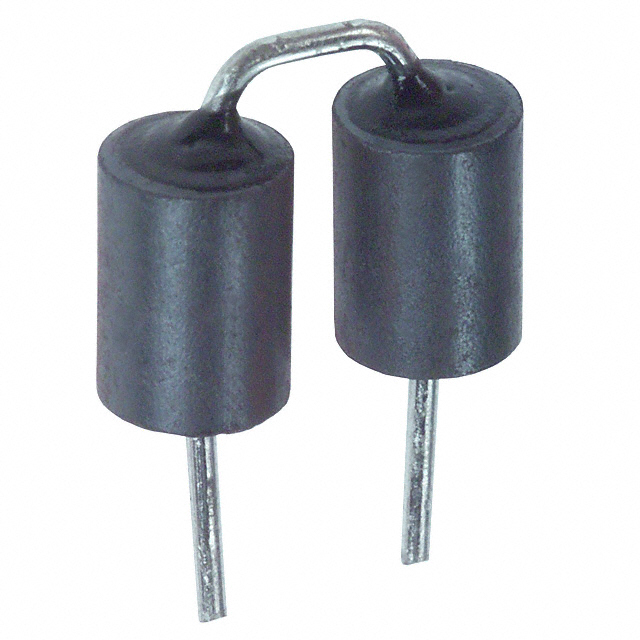

The EXC-ELDR35C is a ferrite bead core manufactured by Panasonic Electronic Components, designed for electromagnetic interference (EMI) suppression. This component features a radial lead configuration and provides an impedance of 90 ohms. It serves as a low-cost noise filter intended to mitigate EMI generated by various digital equipment. The part utilizes a bead core type construction to effectively attenuate high-frequency noise signals in electronic circuits.

Chip Ferrite Bead Feature Summary

• Radial lead configuration for through-hole mounting
• Low-cost design for general EMI suppression
• Bead core construction for noise filtering

Chip Ferrite Bead Applications

• Electromagnetic interference suppression in digital equipment
• Noise filtering for electronic circuits
• High-frequency signal attenuation

Chip Ferrite Bead Procurement Notes

Verify the specific package style and lead configuration against project requirements, as sources indicate both radial and axial variations. Confirm the impedance value of 90 ohms matches the circuit design specifications. Ensure compatibility with the intended mounting method and environmental conditions before procurement.

Chip Ferrite Bead Selection Notes

Select this component when a cost-effective solution for EMI reduction in digital systems is required. The radial form factor suits applications where space allows for through-hole implementation. Consider the 90-ohm impedance characteristic for appropriate noise attenuation levels in the target frequency range.

Chip Ferrite Bead Part Context

This component belongs to the Panasonic EXCEL series of EMI bead cores. The series is characterized by providing affordable noise filtering solutions for digital equipment. The EXC-ELDR35C specifically represents a variant within this lineup, focusing on radial lead availability for standard PCB mounting techniques.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and impedance characteristics when considering alternative ferrite beads from other manufacturers.
