EXC-ELSA39V

Chip Ferrite Bead Overview

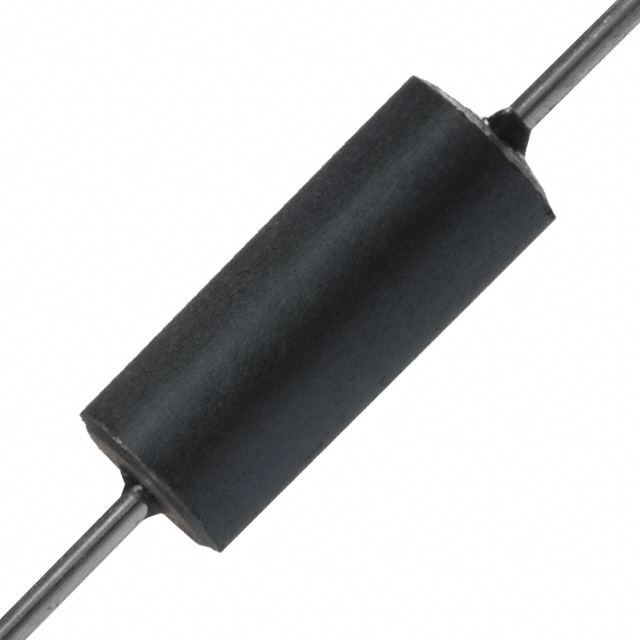

The EXC-ELSA39V is an axial ferrite bead core manufactured by Panasonic Electronic Components. It provides an impedance of 80 ohms and is designed for electromagnetic interference (EMI) suppression applications. The component utilizes a cylindrical bead core construction suitable for through-hole mounting configurations.

Chip Ferrite Bead Feature Summary

• Provides 80 ohm impedance for EMI noise suppression
• Axial lead configuration for circuit integration

Chip Ferrite Bead Applications

• Electromagnetic interference filtering in electronic circuits

Chip Ferrite Bead Procurement Notes

Verify the current lifecycle status, as sources indicate this part may be obsolete. Confirm technical specifications against official Panasonic documentation before design finalization. Ensure compatibility with existing axial footprint requirements and impedance targets for your specific application.

Chip Ferrite Bead Selection Notes

Select this component when an 80 ohm axial ferrite solution is required for EMI suppression. Consider the physical dimensions and axial lead spacing to ensure mechanical fit within the target assembly constraints.

Chip Ferrite Bead Part Context

This component belongs to the ferrite bead cores category from Panasonic Electronic Components. It serves as a passive filter element to attenuate high-frequency noise on signal or power lines.
