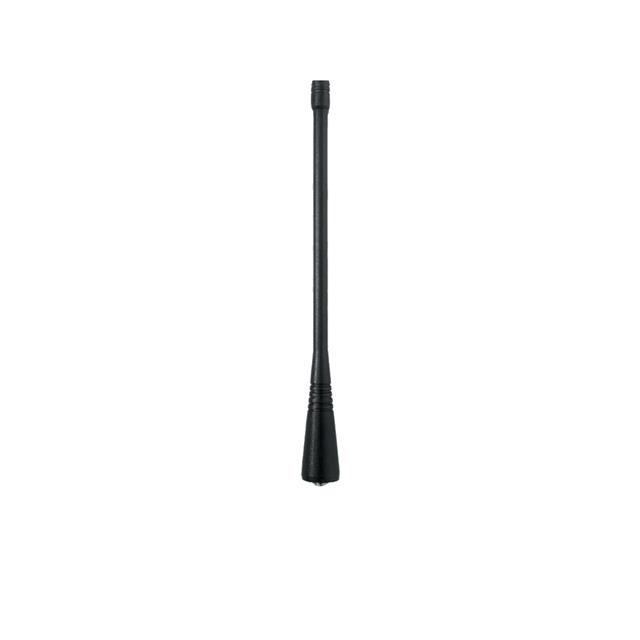

EXC450BNX is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 460MHZ WHIP STR BNX CONN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for EXC450BNX
- Description：RF ANT 460MHZ WHIP STR BNX CONN
- Series：EXC
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：460MHz
- Frequency Range：450MHz ~ 470MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：-
- Features：-
- Termination：BNX
- Ingress Protection：-
- Mounting Type：Connector Mount
- Height (Max)：6.900" (175.26mm)
- Applications：Bluetooth, Wi-Fi
- Power - Max：50 W
Antennas RF datasheet and documents for EXC450BNX
Antennas RF Overview
The TE Connectivity EXC450BNX is a 1/4 wave whip antenna designed for the 450-470 MHz frequency range. It features a molded construction and measures 6 inches in length. This component serves as a compact radio frequency transmission element suitable for VHF band operations.
Antennas RF Feature Summary
- Molded structural design
- 1/4 wave whip configuration
- VHF band operation
Antennas RF Applications
- VHF communication systems
- Mobile radio installations
- Portable transceiver units
Antennas RF Procurement Notes
Verify the exact part number against manufacturer documentation to ensure compatibility with specific system requirements. Confirm that the 450-470 MHz frequency range aligns with intended operational bands. Check physical dimensions and mounting specifications prior to integration into final assemblies.
Antennas RF Selection Notes
Select this model when a compact, molded 1/4 wave whip antenna is required for the 450-470 MHz spectrum. Consider the 6-inch length constraint for spatial limitations. Ensure the application supports VHF band frequencies and utilizes compatible connector interfaces provided by the manufacturer.
Antennas RF Part Context
This antenna belongs to TE Connectivity's portfolio of connectivity solutions. It complements broader network infrastructure components by providing dedicated RF transmission capabilities for specific frequency bands within industrial and commercial communication environments.
Antennas RF Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' antennas without verifying electrical and mechanical specifications.
