EXL1V0402-2R0-R

Fixed Inductors Overview

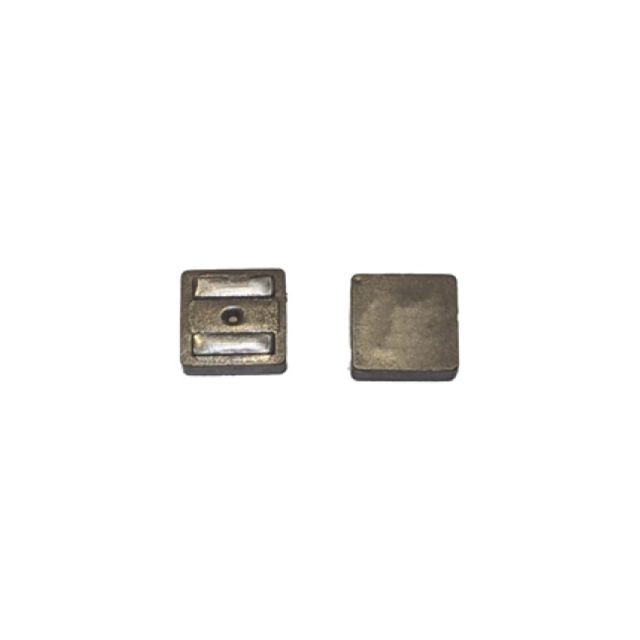

The EXL1V0402-2R0-R is a shielded molded power inductor from Eaton Electronics, designed for surface-mount technology. It features an inductance of 2 µH with a tolerance of ±20%. The component supports a maximum DC current of 8.2 A and reaches saturation at 5.0 A. Its maximum DC resistance is 23.3 mΩ. The unit measures 4.4 mm x 4.4 mm x 1.9 mm and utilizes alloy powder core material. It operates within a temperature range of -55°C to +155°C and holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• High current capability suitable for demanding power applications
• Automotive-grade reliability through AEC-Q200 certification

Fixed Inductors Applications

• Automotive electronics systems
• Power supply circuits
• DC-DC converter modules

Fixed Inductors Procurement Notes

Verify the specific part number against official Eaton documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance value and current ratings, align with the design specifications. Check for any specific ordering suffixes or packaging requirements defined in the manufacturer's datasheet before finalizing procurement.

Fixed Inductors Selection Notes

Select this component when a compact, high-current inductor is required for automotive or industrial applications. The 2 µH value and 8.2 A rating make it suitable for filtering and energy storage in power conversion stages. Ensure the PCB layout accommodates the 4.4 mm x 4.4 mm footprint and that thermal management strategies support the specified operating temperature range.

Fixed Inductors Part Context

This component belongs to the EXL1V series of high-power surface-mount inductors manufactured by Eaton Electronics. The series is characterized by its molded shielded design and use of alloy powder cores. These inductors are engineered to provide stable performance under high current loads while maintaining a low profile for space-constrained printed circuit board assemblies.

Fixed Inductors Replacement Considerations

Consult Eaton Electronics for verified substitute part numbers within the same series or equivalent specifications. Cross-referencing with other manufacturers requires careful validation of physical dimensions, electrical characteristics, and automotive qualification standards.
