EXLA1V0505-5R6-R

Fixed Inductors Overview

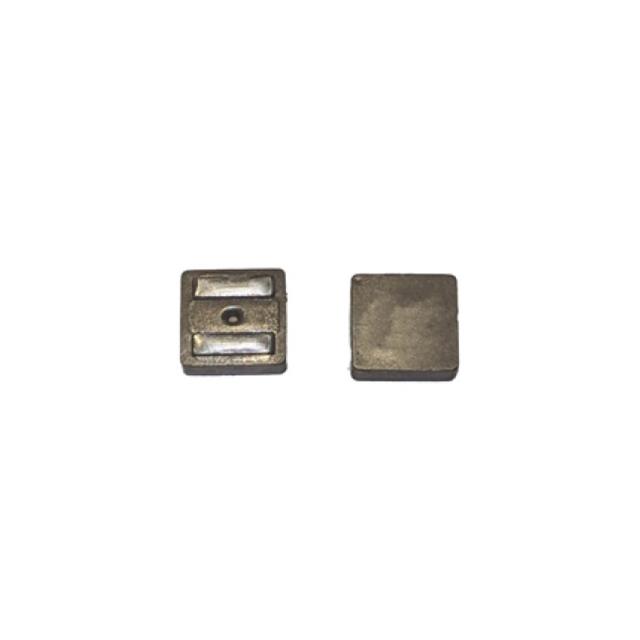

The EXLA1V0505-5R6-R is a shielded, molded surface-mount power inductor from Eaton Electronics. It features an inductance of 5.6 µH with a ±20% tolerance. The component supports a maximum DC current of 7.2 A and a saturation current of approximately 5.3 A to 7.2 A depending on the specific rating definition. It has a maximum DC resistance of 24.2 mΩ. The device operates within a temperature range of -55°C to +155°C and holds AEC-Q200 qualification for automotive applications. Physical dimensions are 6 mm x 6 mm x 5 mm.

Fixed Inductors Feature Summary

• Shielded molded construction reduces electromagnetic interference
• AEC-Q200 qualified for automotive reliability standards
• High current capability suitable for power delivery networks
• Low DC resistance minimizes power loss

Fixed Inductors Applications

• Automotive electronic control units
• Power distribution modules
• DC-DC converter output filtering

Fixed Inductors Procurement Notes

Verify the exact saturation current rating against the official datasheet, as sources vary between 5.3 A and 7.2 A. Confirm package dimensions match the 6x6x5 mm footprint requirement. Ensure the supplier provides the manufacturer's original data sheet for electrical validation before integration into critical automotive circuits.

Fixed Inductors Selection Notes

Select this component when space-constrained designs require a 5.6 µH value with high current handling. The 6x6x5 mm footprint offers a balance between current capacity and board area. Consider the 24.2 mΩ DCR for efficiency calculations. Verify thermal management requirements given the 155°C operating limit.

Fixed Inductors Part Context

This part belongs to the EXLA1V series of high-current shielded inductors designed by Eaton Electronics. The series targets automotive and industrial applications requiring robust performance under varying thermal conditions. The 0505 code indicates the specific 6x6x5 mm package size within the product line.

Fixed Inductors Replacement Considerations

Check for direct substitutes within the EXLA1V series with identical 5.6 µH values. Verify that alternative components match the 6x6x5 mm mechanical footprint and AEC-Q200 qualification status to ensure compatibility.
