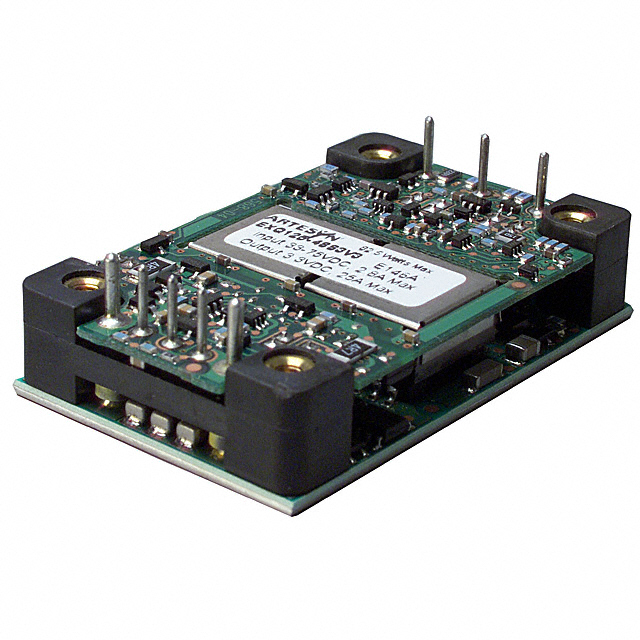

EXQ125-48S3V3

EXQ125-48S3V3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 3.3V 82W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EXQ125-48S3V3

• Description：DC DC CONVERTER 3.3V 82W
• Series：EXQ125 (100W)
• Mfr：ARTESYN / Advanced Energy
• Package：-
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：33V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：25A
• Power (Watts)：82 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/4 Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EXQ125-48S3V3
