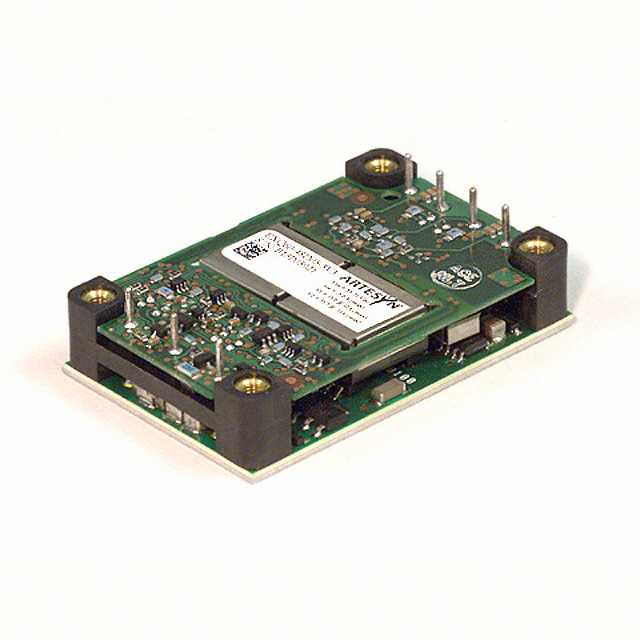

EXQ60-48D05-3V3

EXQ60-48D05-3V3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 5V 3.3V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EXQ60-48D05-3V3

• Description：DC DC CONVERTER 5V 3.3V 60W
• Series：EXQ60 (60W)
• Mfr：ARTESYN / Advanced Energy
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：33V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：3.3V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A, 15A
• Power (Watts)：60 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C
• Efficiency：91.50%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 1/4 Brick
• Size / Dimension：2.30" L x 1.50" W x 0.50" H (58.4mm x 38.1mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EXQ60-48D05-3V3
