EZA-NT14AAAJ

Overview

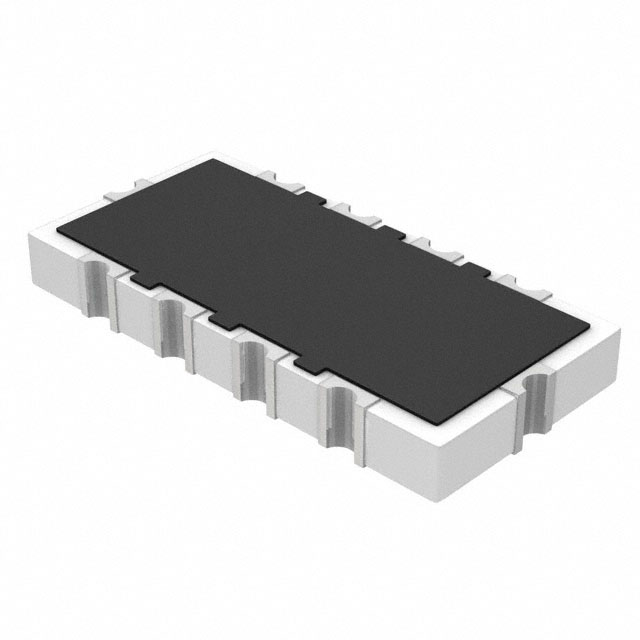

The EZA-NT14AAAJ is an SMD EMI/RFI filter from Panasonic Electronic Components, designed for data lines in mobile devices. It utilizes a PI-filter topology with RC components. The device features a capacitance of 220pF and resistance of 22 Ohms. It is housed in a 6432 metric (2512 imperial) case code with 10 contacts. The component depth measures 3.1mm. It complies with lead-free and RoHS standards.

Feature Summary

• Integrates RC filtering within a compact surface-mount package
• Optimized for high-density mobile device data line protection
• Complies with environmental compliance standards including RoHS

Applications

• Data lines for mobile devices
• Wireless networking projects
• Embedded systems requiring EMI suppression

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging and variant selection. Confirm that the component meets all applicable environmental regulations required for your target market. Cross-reference the datasheet specifications against your circuit requirements to ensure compatibility with signal integrity needs.

Selection Notes

Select this component when space constraints require a small footprint filter for mobile applications. Ensure the 22 Ohm resistance and 220pF capacitance values align with the impedance matching and filtering requirements of the specific data line interface being protected.

Part Context

This part belongs to the EZACT, DT, ST, SS, NT_EZASTB, SSB series of EMI/RFI filters. These components are engineered to suppress electromagnetic interference in compact electronic assemblies. The series offers various configurations tailored for different signal types and form factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Panasonic channels for potential obsolescence management or equivalent alternatives if this specific model becomes unavailable.
