Product Detailed Parameters
- Description：PWR XFMR LAMINATED 12VA CHAS MT
- Series：Control Transformers
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 6V, Series 12V
- Current - Output (Max)：Parallel 2A, Series 1A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：12VA
- Mounting Type：Chassis Mount
- Termination Style：Solder Lug
- Size / Dimension：73.02mm L x 44.45mm W
- Height - Seated (Max)：60.32mm
- Voltage - Isolation：1500Vrms
- Weight：1 lb (453.59 g)
Download product information
Overview

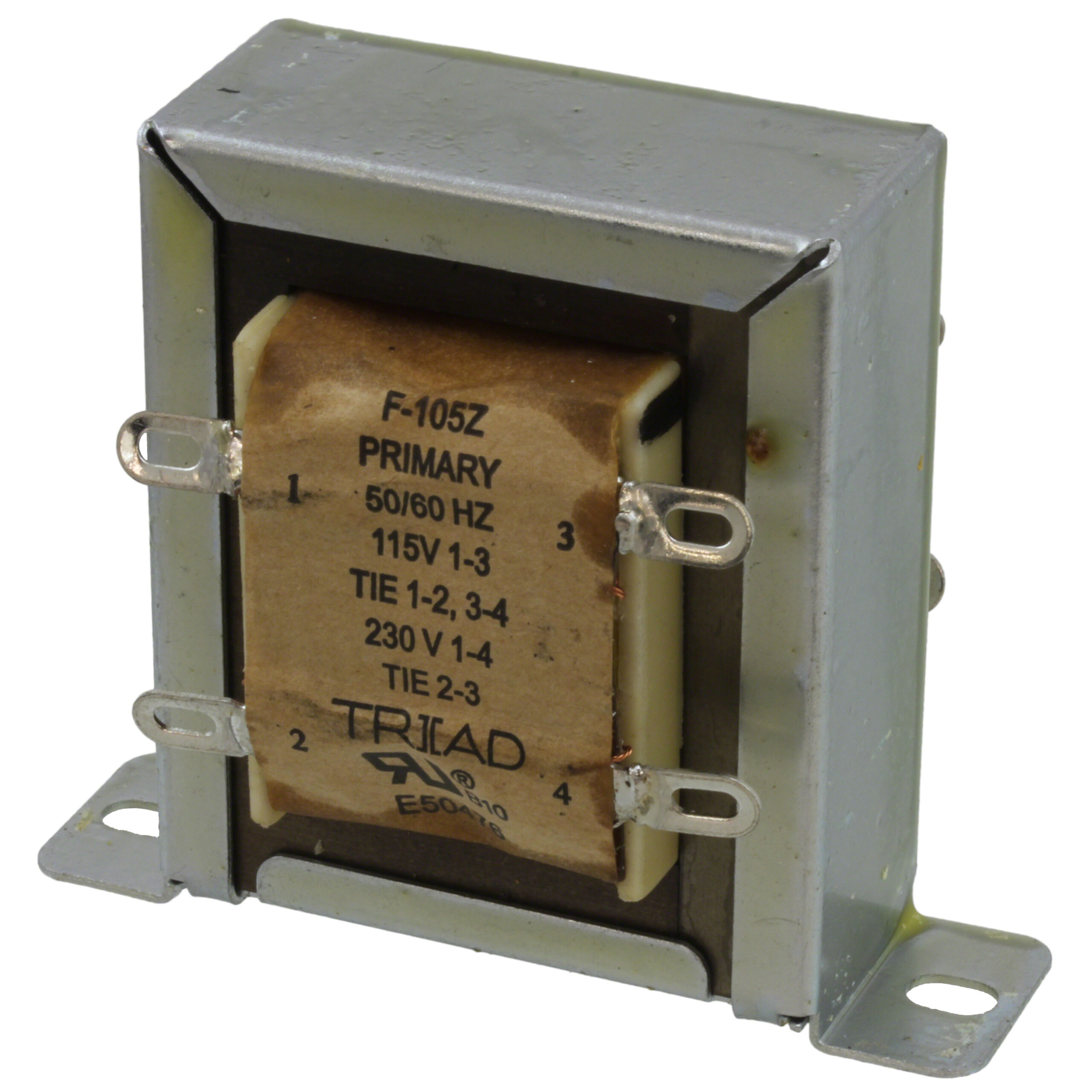

The Triad Magnetics F-105Z is an industrial control transformer designed for chassis mounting. It features a dual-voltage primary input of 115/230V AC and provides a secondary output of 12.0V CT at 1.0A. The unit has a power rating of 12 VA and utilizes quick connect terminals with lugs for secure installation. Operating within a temperature range of 0°C to +35°C, it complies with UL and cUL safety standards.
Feature Summary
- Dual-voltage primary configuration supporting both 115V and 230V AC inputs
- Chassis mount design with integrated lugs for mechanical stability
- Industrial control application optimized for standard voltage regulation
Applications
- Industrial control panels requiring isolated power supply
- Equipment utilizing 12V AC control circuits
- Machinery with dual-voltage operational requirements
Procurement Notes
Verify the specific ordering suffix against official Triad Magnetics documentation to ensure correct terminal type and certification compliance. Confirm that the required input voltage matches the 115/230V specification. Check datasheet revisions for any updates to physical dimensions or mounting hole patterns prior to integration into existing chassis designs.
Selection Notes
Select this component when a compact, chassis-mountable solution is needed for 12V AC control logic. Ensure the load current does not exceed 1.0A to maintain thermal performance within the specified operating temperature range. Consider the physical footprint and lug-style termination compatibility with the target PCB or wiring harness layout.
Part Context
This model belongs to the F series of industrial control transformers from Triad Magnetics. These units are engineered for robust performance in manufacturing and automation environments. The series typically offers standardized form factors suitable for direct panel integration without requiring additional mounting hardware.
Replacement Considerations
Consult official substitution guides for equivalent models with matching electrical ratings. Verify that alternative components support the same 115/230V primary input and 12V CT secondary output specifications.
