Product Detailed Parameters
- Description：PWR XFMR LAMINATED 24VA CHAS MT
- Series：Control Transformers
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 6V, Series 12V
- Current - Output (Max)：Parallel 4A, Series 2A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：24VA
- Mounting Type：Chassis Mount
- Termination Style：Solder Lug
- Size / Dimension：79.38mm L x 50.80mm W
- Height - Seated (Max)：69.85mm
- Voltage - Isolation：1500Vrms
- Weight：1.5 lbs (680.4 g)
Download product information
Overview

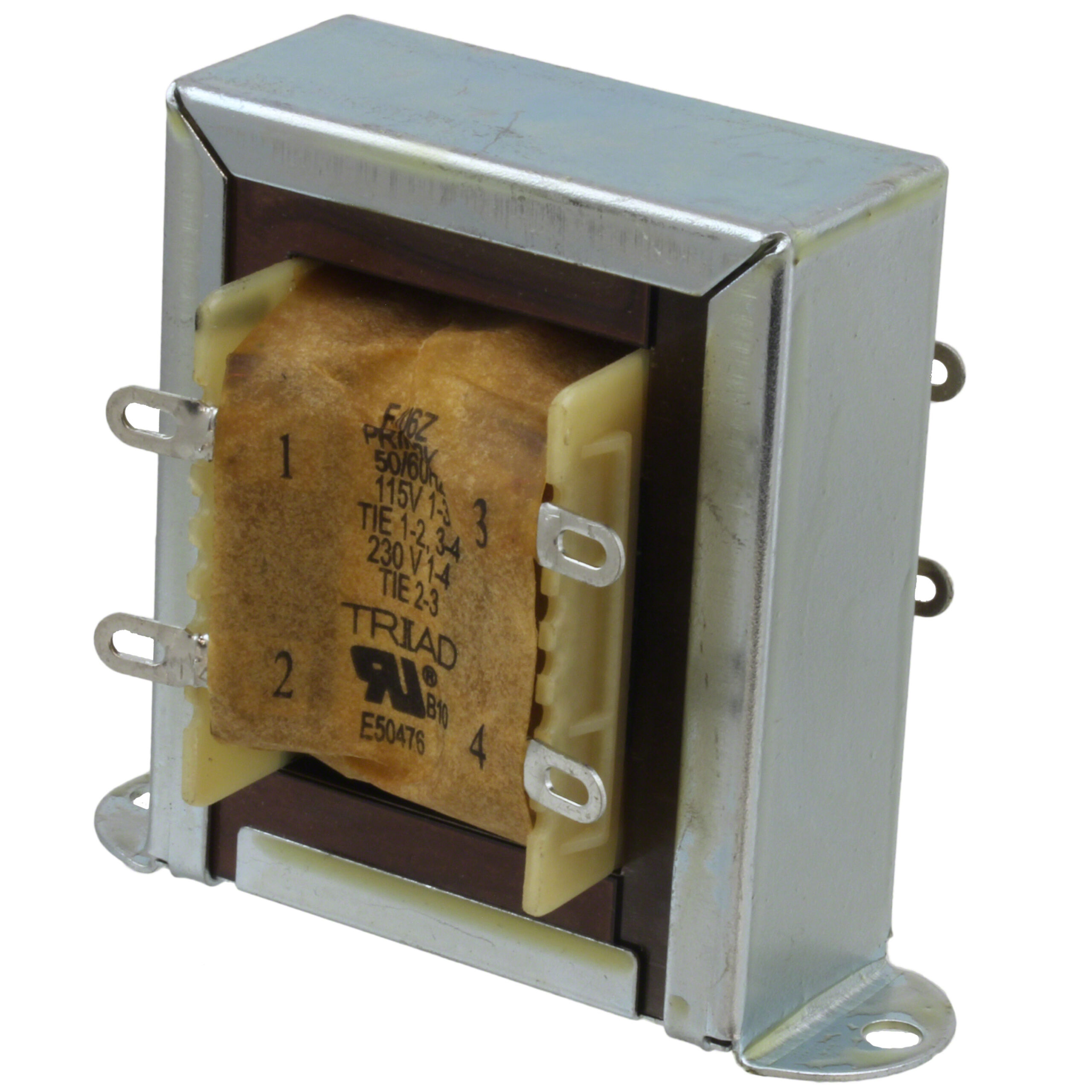

The F-106Z is a chassis-mount power transformer manufactured by Triad Magnetics. It provides a secondary output of 12.0V center-tapped at 2.0A, with an additional 6.0V winding capable of 4.0A. The unit accepts input voltages of 115V or 230V AC and utilizes lug terminals for connection. Designed for industrial applications, it features a robust construction suitable for panel integration.
Feature Summary
- Provides dual secondary voltage outputs via center-tapped and auxiliary windings
- Supports universal primary input for 115V and 230V AC operation
- Utilizes chassis mount design with lug terminals for secure installation
Applications
- Industrial control systems requiring isolated power supplies
- Equipment needing multiple DC voltage rails from a single transformer
- Chassis-mounted power distribution units
Procurement Notes
Verify the specific secondary current ratings and physical dimensions against the official Triad Magnetics datasheet before integration. Confirm that the lug terminal configuration matches the existing wiring harness or busbar requirements in the target assembly to ensure mechanical compatibility.
Selection Notes
Select this component when a compact, chassis-mount solution is required for converting standard line voltages to lower AC potentials. Ensure the application demands a center-tapped configuration and that the thermal environment supports the transformer's rated capacity without exceeding temperature limits.
Part Context
This part belongs to Triad Magnetics' industrial power transformer lineup, designed for reliability in demanding environments. It serves as a critical isolation component in power supply chains, bridging high-voltage mains to low-voltage circuitry while maintaining electrical safety standards through robust insulation and mounting structures.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternatives from other manufacturers.
