Product Detailed Parameters

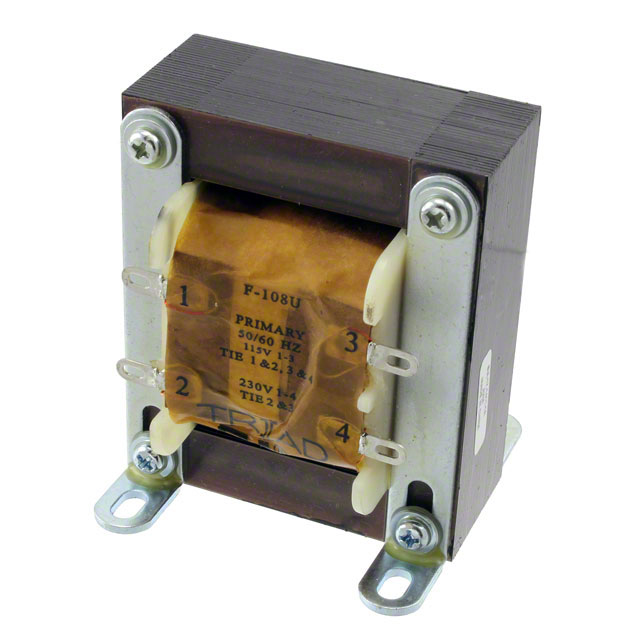

- Description：PWR XFMR LAMINATED 96VA CHAS MT
- Series：Control Transformers
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 12V, Series 24V
- Current - Output (Max)：Parallel 8A, Series 4A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：96VA
- Mounting Type：Chassis Mount
- Termination Style：Solder Lug
- Size / Dimension：71.42mm L x 63.50mm W
- Height - Seated (Max)：86.51mm
- Voltage - Isolation：1500Vrms
- Weight：3.5 lbs (1.6 kg)
Download product information
Overview
The Triad Magnetics F-108U is a chassis-mount industrial control transformer designed for power conversion applications. It features a single primary winding rated for 115VAC or 230VAC input at 50/60Hz. The unit provides dual secondary windings delivering 12VAC and 24VAC outputs. With a total power rating of 96VA, it utilizes a laminated core construction. The component terminates via wire leads and operates within a temperature range up to +130°C.
Feature Summary
- Dual secondary voltage outputs for flexible circuit powering
- Chassis mounting style with wire lead termination
- Laminated core construction for efficient power transfer
Applications
- Industrial control panel power supplies
- Equipment requiring simultaneous 12V and 24V AC rails
- General purpose power transformation in enclosures
Procurement Notes
Verify the specific output current ratings against your load requirements before ordering. Confirm that the chassis mounting dimensions fit your enclosure design. Ensure the input voltage matches your available line voltage (115V or 230V). Check for any regional shipping restrictions due to weight or size limitations.
Selection Notes
Select this model when both 12VAC and 24VAC are required from a single source. The 96VA rating supports moderate load currents. Consider the chassis mount form factor if panel space allows. Verify insulation class and safety certifications meet local regulatory standards for the intended deployment environment.
Part Context
This component belongs to the Triad Magnetics F series of industrial control transformers. These units are engineered for reliability in demanding environments. The F-108U specifically addresses needs for multi-voltage distribution within a compact footprint. It serves as a foundational power element in various electromechanical systems.
Replacement Considerations
Consult official Triad Magnetics documentation for direct cross-references. Ensure substitute models match the 96VA power rating and dual secondary configuration. Verify physical dimensions and terminal types for compatibility.
