Product Detailed Parameters
- Description：PWR XFMR LAMINATED 8.4VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：12V
- Current - Output (Max)：700mA
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：No
- Power - Max：8.4VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：71.42mm L x 41.28mm W
- Height - Seated (Max)：41.28mm
- Voltage - Isolation：1500Vrms
- Weight：0.8 lb (362.87 g)
Download product information
Overview

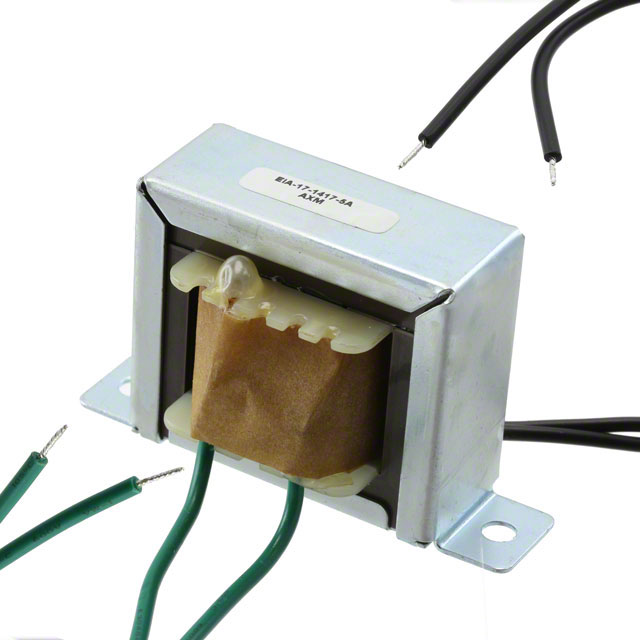

The Triad Magnetics F-114X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated at 115 VAC and a single secondary winding providing 12.0 V at 0.700 A. The unit has a power rating of 8.4 VA. Physical dimensions are 1.63 inches in length, 2.81 inches in width, and 1.63 inches in height. The component weighs approximately 362 grams and belongs to the F series of industrial control transformers.
Feature Summary
- Chassis mount construction with integrated wire leads for direct circuit connection
- Single primary and single secondary winding configuration for standard step-down applications
- Laminated core design optimized for industrial control environments
Applications
- Industrial control panel power supply
- Equipment requiring 115V to 12V AC step-down conversion
- Chassis-mounted electronic enclosures
Procurement Notes
Verify the specific datasheet version for the F-114X to confirm insulation class and temperature rise ratings prior to integration. Ensure that the chassis mounting holes align with the specified physical dimensions of 1.63 x 2.81 inches. Confirm that the wire lead termination method matches the target PCB or terminal block specifications. Check for any regional shipping restrictions related to product weight or size if applicable.
Selection Notes
Select the F-114X when a fixed 115V input to 12V output transformation is required in a compact chassis form factor. This model is suitable for applications where space constraints limit the use of larger transformers. Consider the 8.4 VA power rating to ensure it meets the load requirements of the downstream circuitry without exceeding thermal limits.
Part Context
The F-114X is part of Triad Magnetics' F series, which focuses on industrial control transformers. These components are engineered for reliability in demanding environments. The series offers various voltage configurations and power ratings to support diverse industrial automation needs while maintaining standard chassis mounting profiles.
Replacement Considerations
No public substitute part numbers are documented for this specific model.
