Product Detailed Parameters
- Description：PWR XFMR LAMINATED 2.04VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：24V
- Current - Output (Max)：85mA
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：2.04VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：52.37mm L x 34.93mm W
- Height - Seated (Max)：30.15mm
- Voltage - Isolation：1500Vrms
- Weight：0.3 lb (136.08 g)
Download product information
Overview

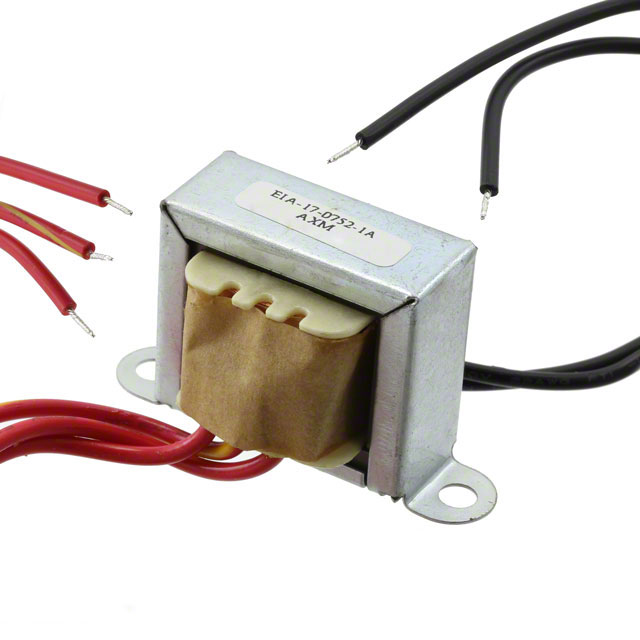

The Triad Magnetics F-115X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated at 115 VAC and a dual secondary winding configuration providing 24.0 Vct at 0.085A. The unit has a power rating of 2.04 VA and operates within a temperature range of 0°C to +130°C. Physical dimensions are 1.38 inches in length, 2.06 inches in width, and 1.19 inches in height, weighing approximately 136.078 grams.
Feature Summary
- Chassis mount construction with integrated wire leads for direct connection
- Dual secondary winding capability for flexible voltage output configurations
- Single primary winding optimized for standard 115 VAC input applications
Applications
- Industrial control panel power supply circuits
- Equipment requiring isolated low-voltage AC power sources
- Chassis-mounted electronic enclosures needing compact transformers
Procurement Notes
Verify the specific secondary current requirement matches the 0.085A rating before integration. Confirm that the chassis mounting style and wire lead termination align with the assembly design. Ensure the operating environment stays within the specified 0°C to +130°C thermal limits. Check RoHS compliance details if restricted substance regulations apply to the final product deployment.
Selection Notes
Select this model when a low-power, single-phase isolation transformer is required for 115V systems. The dual secondary windings allow for series or parallel connections to meet specific voltage needs. Consider the physical footprint and weight constraints against available chassis space. This component suits applications where high efficiency is not critical but reliable isolation and simple wiring are priorities.
Part Context
The F-115X belongs to the F series of industrial control transformers from Triad Magnetics. This series focuses on robust performance for general-purpose industrial equipment. The part number indicates specific electrical characteristics distinct from other variants in the lineup, such as different voltage taps or power ratings.
Replacement Considerations
No public confirmed substitute part numbers are documented in the provided source material.
