F-116X

Overview

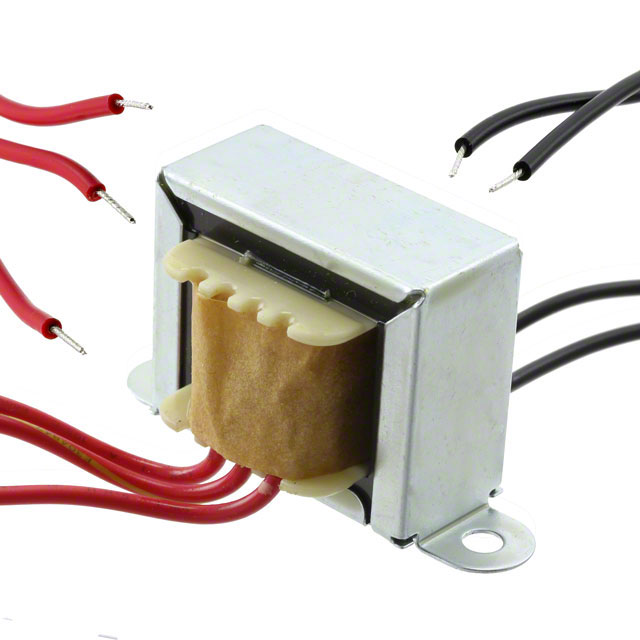

The Triad Magnetics F-116X is an industrial control transformer designed for chassis mounting. It features a single primary winding rated at 115 VAC and a single secondary winding providing 24.0 VCT at 0.200A. The unit has a power rating of 4.8 VA and utilizes wire leads for termination. Physical dimensions are 1.5 inches in length, 2.81 inches in width, and 1.63 inches in height, with a weight of approximately 362.87 grams.

Feature Summary

• Chassis mount construction for secure installation
• Bobbin wound transformer design
• Single primary and single secondary winding configuration

Applications

• Industrial control panels
• Equipment power supply circuits
• General industrial machinery

Procurement Notes

Verify the specific voltage and current ratings against the official datasheet to ensure compatibility with the target application requirements. Confirm that the chassis mounting style and wire lead termination type align with the system's mechanical and electrical interface specifications before finalizing the order.

Selection Notes

Select this component when a compact industrial control transformer with 115V input and 24VCT output is required. Ensure the available chassis space accommodates the specified physical dimensions and that the wiring harness supports the wire lead termination method provided by this model.

Part Context

This part belongs to the F series of industrial control transformers from Triad Magnetics. These units are engineered for general-purpose applications requiring reliable step-down voltage conversion in industrial environments, offering a balance of performance and standard form factors.

Replacement Considerations

Consult official documentation for direct substitutes. Verify that any alternative part matches the 115V primary, 24VCT secondary, and 4.8 VA rating while maintaining compatible physical dimensions and mounting styles.
