F-117X

Overview

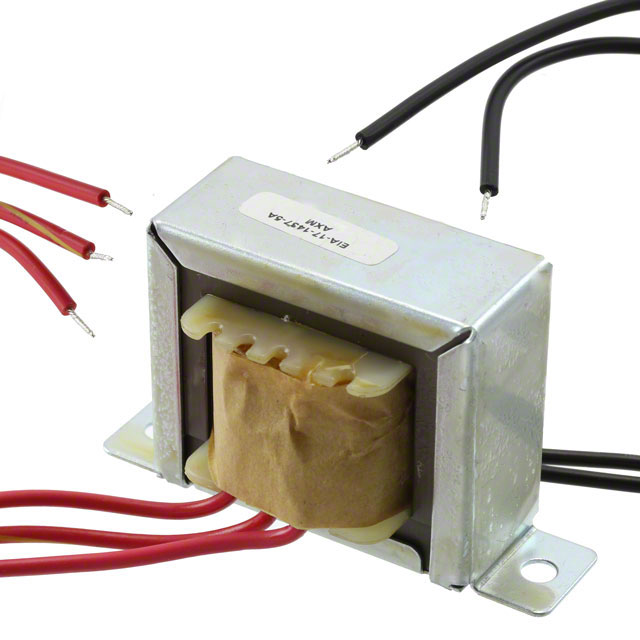

The Triad Magnetics F-117X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated for 115 VAC input and a center-tapped secondary output of 24.0 V at 0.400 A. The unit has a power rating of 9.6 VA and operates within a temperature range of 0°C to +130°C. Physical dimensions are 1.5 inches in length, 2.81 inches in width, and 1.63 inches in height, weighing approximately 362.87 grams.

Feature Summary

• Chassis mount construction with integrated wire leads for direct connection
• Single primary winding configuration supporting standard 115V AC lines
• Center-tapped secondary output providing stable voltage regulation
• High thermal tolerance suitable for demanding industrial environments

Applications

• Industrial control panels requiring isolated power distribution
• Equipment housing needing compact chassis-mounted transformers
• Power supply circuits utilizing rectifier or filter stages
• General purpose industrial machinery control systems

Procurement Notes

Verify the specific part number suffix against official Triad Magnetics documentation to ensure correct lead configuration and insulation class. Confirm that the 115V primary rating matches the target application voltage, as this model does not support dual-voltage switching like other variants in the series. Cross-reference the physical footprint dimensions with the enclosure design to guarantee proper fitment during installation.

Selection Notes

Select the F-117X when a dedicated 115V input is required rather than a universal 115/230V option. This model provides a higher current capacity compared to lower-power counterparts in the F series while maintaining a similar form factor. Ensure the application environment stays within the specified operating temperature limits to maintain performance and safety compliance.

Part Context

The F-117X belongs to the Triad Magnetics F series of industrial control transformers. This series is characterized by robust laminated core construction and versatile mounting options. The component serves as a critical interface for stepping down line voltage to safer levels for control circuitry, distinguishing it from signal transformers through its higher power handling capabilities.

Replacement Considerations

The F-3117X serves as a compatible alternative if dual-voltage (115/230V) input capability is required, though it shares identical secondary specifications. Verify mechanical compatibility before substitution, as pinout orientations may differ between manufacturers.
