F-119X

Overview

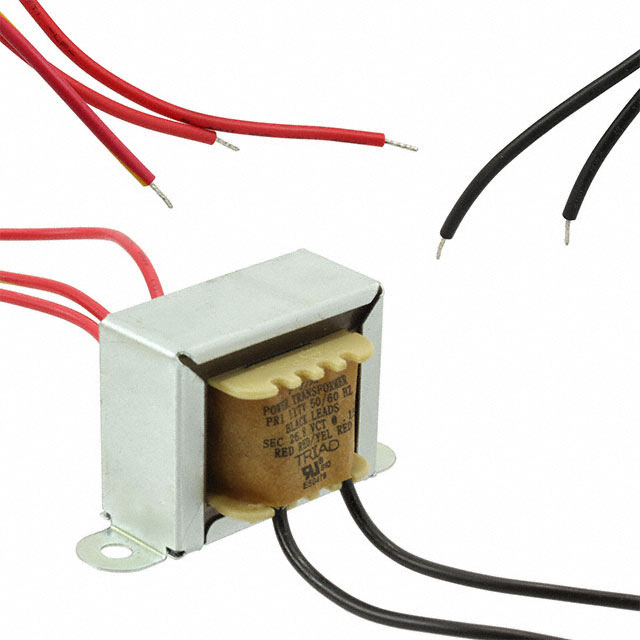

The Triad Magnetics F-119X is an industrial power transformer designed for chassis mounting with wire leads. It features a laminated core construction and supports a maximum power rating of 4.02 VA. The primary winding accepts 115V AC input at 50/60 Hz frequencies. The secondary output provides 26.8V center-tapped voltage at a current capacity of 150mA. Physical dimensions include a height of approximately 34.93mm, suitable for standard industrial control enclosures.

Feature Summary

• Chassis mount design with integrated wire leads for straightforward installation
• Laminated core construction ensuring stable electrical performance
• Single primary winding configuration compatible with standard 115VAC lines
• Center-tapped secondary output for versatile circuit integration

Applications

• Industrial automation control panels
• Embedded system power supplies
• General electronics equipment requiring isolated power
• Industrial control transformers

Procurement Notes

Verify the specific datasheet version from Triad Magnetics before finalizing designs, as specifications may be updated. Confirm that the 26.8Vct secondary rating aligns with your load requirements. Ensure chassis mounting space accommodates the physical dimensions. Check lead times as they are subject to manufacturing schedules. Validate compliance with relevant safety standards for your target market.

Selection Notes

Select this component when a compact, low-power transformer is needed for 115VAC systems. The 4.02 VA rating suits light industrial loads. Consider the chassis mount style if panel integration is required rather than PCB mounting. Verify that the center-tapped secondary meets the voltage regulation needs of the downstream circuitry compared to non-tapped alternatives.

Part Context

This part belongs to the F series of industrial power transformers from Triad Magnetics. These units are engineered for durability in demanding environments. The series typically offers various voltage configurations to support diverse control applications. The F-119X specifically addresses needs for moderate power isolation in compact form factors.

Replacement Considerations

Direct substitutes must match the 4.02 VA rating, 115V primary, and 26.8Vct secondary specifications. Verify physical footprint compatibility for chassis mounting. Ensure equivalent thermal performance and insulation class. Consult manufacturer cross-reference lists for verified equivalents.
