F-148XP

Overview

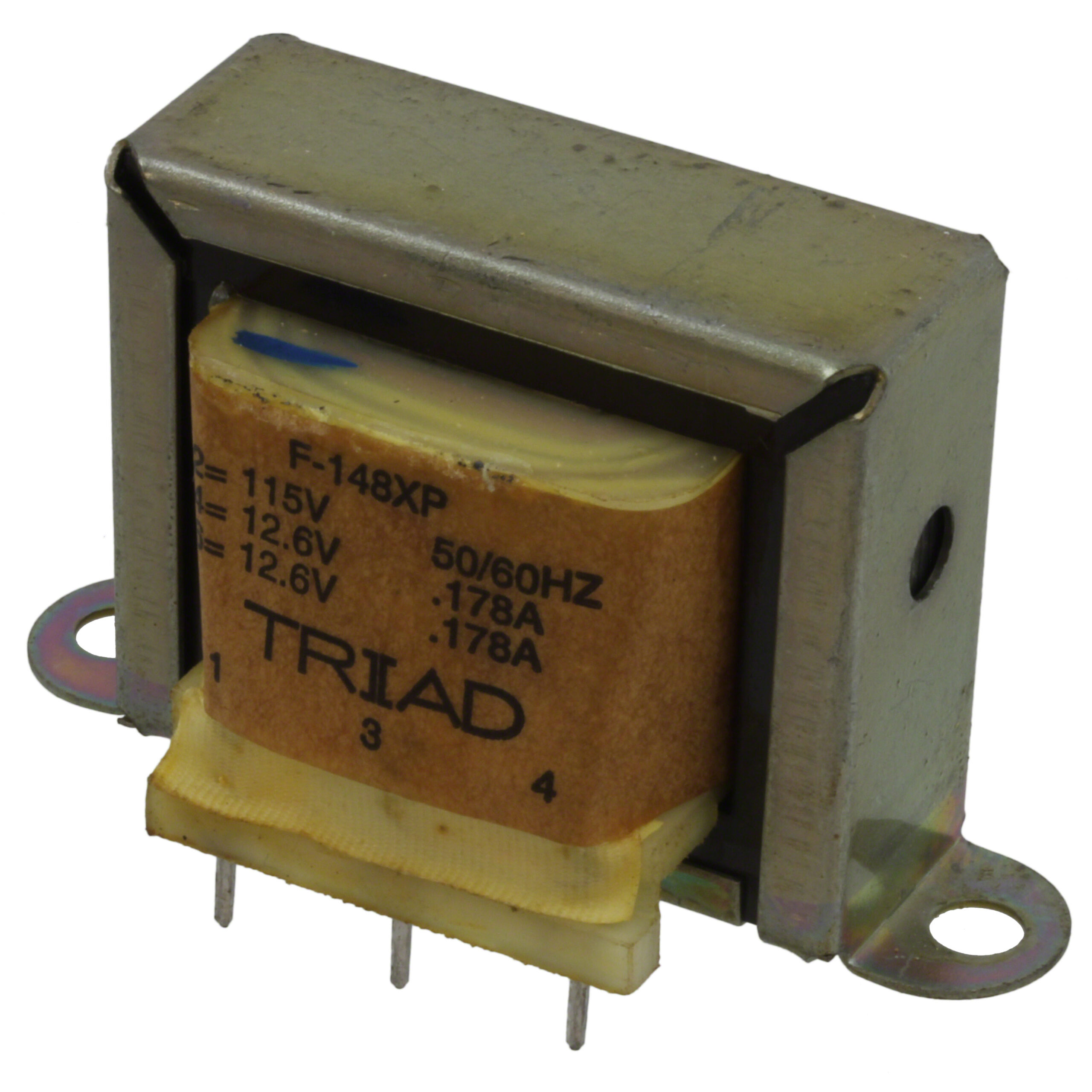

The Triad Magnetics F-148XP is a PCB mount power transformer designed for industrial applications. It features a single primary winding rated for 115 VAC input voltage. The secondary configuration supports parallel operation at 12.6V or series operation at 25.2V, delivering a current capacity of 0.178A. With a power rating of approximately 4.5 VA, this component utilizes through-hole mounting technology. It operates within a temperature range of 0°C to +130°C and complies with RoHS standards for environmental safety.

Feature Summary

• Dual secondary winding architecture enabling flexible series or parallel voltage configurations
• Through-hole PCB mounting design for secure mechanical integration
• High thermal stability supporting continuous operation up to +130°C
• Single primary winding optimized for standard 115 VAC line voltage

Applications

• Industrial control panel power supplies
• Embedded system AC-to-DC conversion stages
• Automation equipment internal power distribution
• Electronic instrumentation power regulation

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and pinout compatibility before integration. Ensure that the selected mounting orientation aligns with the board layout constraints. Confirm that the load current does not exceed the 0.178A rating to maintain safe operating temperatures. Check regulatory compliance documentation against local industry standards.

Selection Notes

Select this model when a compact solution is required for 115VAC input systems needing either 12.6V or 25.2V outputs. Consider the thermal environment carefully as the unit supports high ambient temperatures. Evaluate space limitations against the physical footprint requirements. Compare against similar FS series models if different voltage ratings are needed.

Part Context

This component belongs to the Triad Magnetics F-series of power transformers, which are engineered for general-purpose industrial use. The series emphasizes reliability and compact form factors suitable for printed circuit board integration. These units typically feature robust insulation systems and standardized pin configurations to facilitate widespread adoption in manufacturing environments.

Replacement Considerations

Consult official substitution guides for direct equivalents. Verify that any alternative part matches the 115VAC primary rating and provides compatible secondary voltage options. Ensure physical dimensions and pin spacing are identical to avoid rework.
