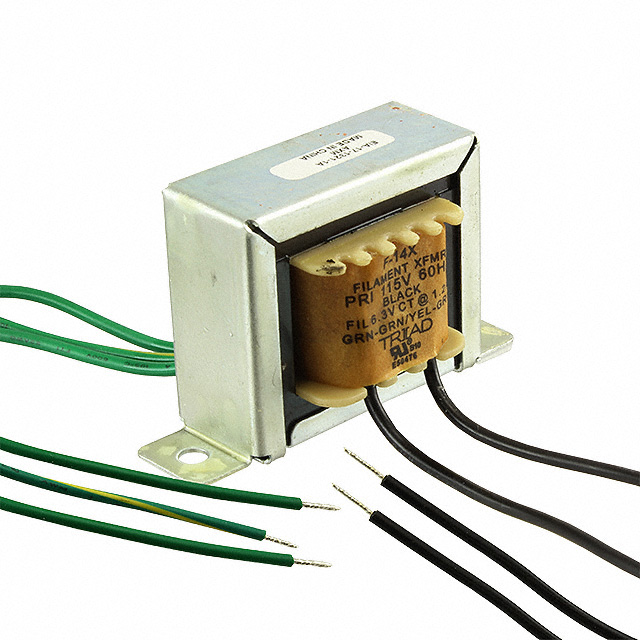

F-14X
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 7.56VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：1.2A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：7.56VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：71.42mm L x 41.28mm W
- Height - Seated (Max)：41.28mm
- Voltage - Isolation：2500Vrms
- Weight：0.7 lb (317.51 g)
Download product information
Overview
The F-14X is a power transformer manufactured by Triad Magnetics, designed for industrial control applications. It features a single primary winding rated at 115 VAC and a single secondary winding providing 14 VAC output. The unit has a power rating of 7.0 VA and utilizes chassis mounting with wire leads for termination. Physical dimensions are 1.63 inches in length, 2.81 inches in width, and 1.63 inches in height. The device offers 2500 Vrms isolation voltage and operates within a temperature range suitable for standard industrial environments.
Feature Summary
- Chassis mount construction with wire leads for secure installation
- Single primary and single secondary winding configuration
- High isolation voltage rating for safety compliance
Applications
- Industrial control panels
- Power supply circuits requiring 115V input
- Equipment needing 14VAC step-down transformation
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Triad Magnetics or authorized distributors before procurement. Confirm that the wire lead length and gauge meet your assembly requirements. Ensure the chassis mounting holes align with your enclosure design specifications to avoid mechanical integration issues during production.
Selection Notes
Select the F-14X when a 115VAC to 14VAC transformation is required with a 7.0 VA capacity. This model is appropriate for chassis-mounted installations where wire leads are preferred over PCB through-hole connections. Consider the physical footprint and isolation requirements to ensure compatibility with the target equipment's electrical and mechanical constraints.
Part Context
The F-14X belongs to the F series of industrial control transformers from Triad Magnetics. This series typically includes various power ratings and voltage configurations tailored for general industrial use. The component serves as a fundamental power conversion element in systems requiring reliable AC voltage stepping.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Engineers should verify equivalent specifications such as VA rating, voltage ratios, and physical dimensions when considering alternative components from other manufacturers.
