Product Detailed Parameters

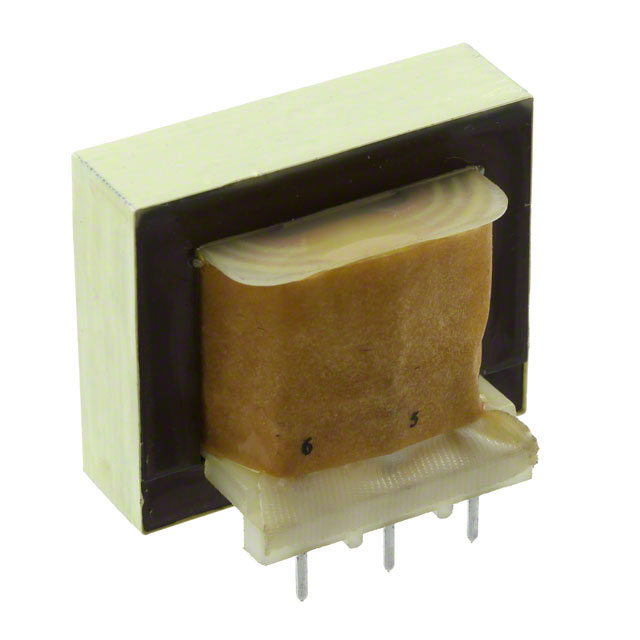

- Description：PWR XFMR LAMINATED 1.5VA TH
- Series：Single Primary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：Parallel 8.5V, Series 17V
- Current - Output (Max)：Parallel 170mA, Series 85mA
- Primary Winding(s)：Single
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：1.5VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：35.31mm L x 39.67mm W
- Height - Seated (Max)：30.15mm
- Voltage - Isolation：1500Vrms
- Weight：0.219 lb (99.34 g)
Download product information
Overview
The Triad Magnetics F-150P is a 1.5 VA power transformer designed for printed circuit board mounting. It features a single primary winding rated at 115V AC, 50/60 Hz. The secondary configuration supports series operation at 17.0V CT with 0.085 Amps or parallel operation at 8.5V CT with 0.170 Amps. Constructed on a single-channel nylon bobbin with UL recognized Class B materials rated for 130°C, it undergoes 100% hipot testing ensuring 1500V insulation between windings.
Feature Summary
- Supports flexible secondary voltage configurations via series or parallel connection options
- Constructed with UL recognized Class B insulated materials for thermal stability
- Includes comprehensive electrical safety verification through 100% hipot testing
Applications
- Solid state power supply design
- Control and instrumentation circuits
- PC board integration requiring compact power transformation
Procurement Notes
Verify the specific secondary configuration required for your application, as the unit supports both series and parallel wiring. Confirm that the physical dimensions and pin spacing match your PCB footprint requirements. Ensure the input voltage aligns with the 115V primary rating. Check for RoHS compliance status relative to your manufacturing date constraints.
Selection Notes
Select this component when a low-power, chassis-independent transformer is needed for direct PCB integration. It is suitable for applications requiring isolated power conversion with standard industrial temperature ratings. Consider the dual secondary flexibility if variable voltage output is necessary within the design constraints.
Part Context
The F-150P belongs to Triad Magnetics' wide selection of plug-in type transformers. These components are engineered to meet the specific needs of PC boards and solid-state power supply designs. The series provides reliable power and control solutions for various electronic systems.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
