F-153XP

Overview

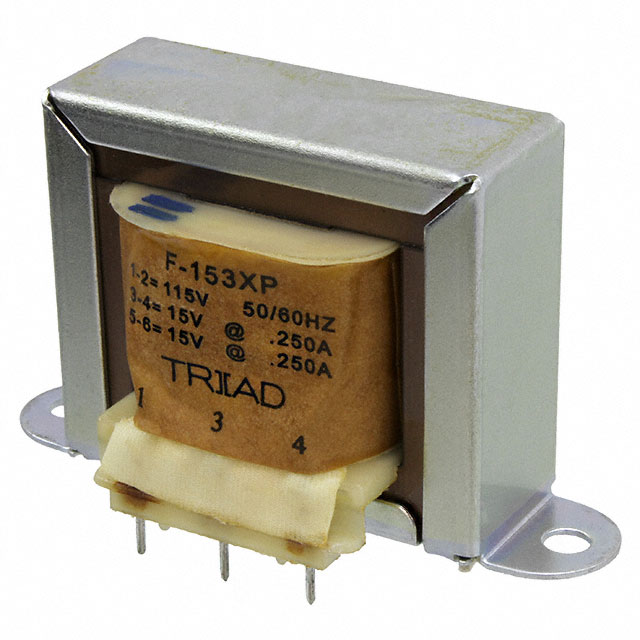

The Triad Magnetics F-153XP is a laminated core power transformer designed for chassis mounting with PC pin termination. It features a single primary winding rated for 115VAC and dual secondary windings configured in parallel to provide 15V and 30V outputs. The unit has a power rating of 7.5VA and supports a maximum current of 500mA. Physical dimensions are 71.42mm in length, 37.29mm in width, and 41.28mm in height, with a maximum operating temperature of +130°C.

Feature Summary

• Laminated core construction for efficient power transformation
• Single primary winding configuration compatible with standard AC inputs
• Dual secondary windings offering flexible voltage output options
• PC pin termination style suitable for printed circuit board integration

Applications

• Chassis-mounted electronic equipment requiring isolated power supplies
• Audio amplifiers utilizing split-rail or multi-voltage requirements
• Industrial control systems needing robust transformer isolation
• Test and measurement instruments demanding stable voltage regulation

Procurement Notes

Verify the specific datasheet version prior to ordering, as manufacturer specifications may undergo revisions. Confirm that the chassis mounting style and PC pin termination align with your mechanical design constraints. Ensure the 7.5VA power rating and 500mA current capacity meet the load requirements of your application without exceeding thermal limits at the specified maximum operating temperature.

Selection Notes

Select this component when a chassis-mount solution is preferred over PCB-only formats for improved heat dissipation and mechanical stability. The dual secondary configuration allows for versatile rectification circuits, supporting both single-ended and center-tapped applications. Consider the physical footprint of 71.42mm by 37.29mm to ensure adequate clearance within the enclosure design while maintaining compliance with safety isolation standards.

Part Context

The F-153XP belongs to Triad Magnetics' general line of laminated core power transformers. These components are engineered for reliability in commercial and industrial environments. The series typically offers various voltage and wattage combinations to accommodate diverse power supply designs, providing a standardized interface for engineers integrating AC-to-DC conversion stages into larger electronic assemblies.

Replacement Considerations

Consult official Triad Magnetics documentation for direct cross-reference part numbers. Verify that any substitute maintains identical electrical ratings, including 7.5VA power, 115V primary, and dual secondary voltages. Ensure mechanical compatibility regarding chassis mounting holes and PC pin spacing to avoid redesigning the host circuit board or enclosure structure.
