Product Detailed Parameters
- Description：PWR XFMR LAMINATED 7.5VA TH
- Series：Single Primary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：Parallel 12.6V, Series 25.2V
- Current - Output (Max)：Parallel 600mA, Series 300mA
- Primary Winding(s)：Single
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：7.5VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：71.42mm L x 37.29mm W
- Height - Seated (Max)：41.28mm
- Voltage - Isolation：1500Vrms
- Weight：0.657 lb (298.01 g)
Download product information
Overview

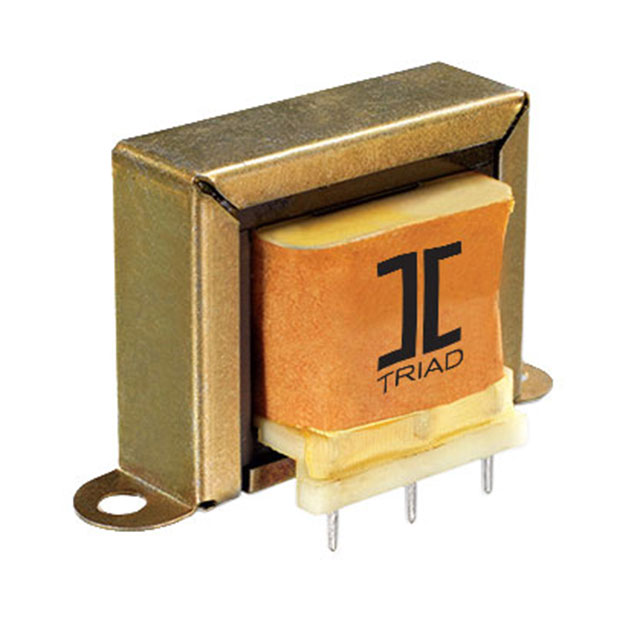

The Triad Magnetics F-158XP is a laminated core power transformer designed for through-hole mounting. It features a single primary winding rated at 115V and dual secondary windings providing parallel 12.6V at 600mA or series 25.2V at 300mA. The unit has a maximum power rating of 7.5VA and offers 1500Vrms isolation voltage. Physical dimensions are 71.42mm in length, 37.29mm in width, and a maximum height of 41.28mm, weighing approximately 298.01g.
Feature Summary
- Laminated core construction for efficient magnetic coupling
- Dual secondary windings supporting parallel or series configurations
- Through-hole PC pin termination for board integration
- High isolation voltage capability between primary and secondary circuits
Applications
- Low voltage DC power supply units
- Audio equipment power stages
- Industrial control circuitry
- General purpose AC to AC conversion
Procurement Notes
Verify the specific secondary configuration required for your design, as the part supports both parallel and series outputs. Confirm that the through-hole footprint matches your PCB layout constraints. Ensure the 115V primary input aligns with your source voltage. Check RoHS compliance status if environmental regulations apply to your manufacturing process. Validate thermal requirements against the 7.5VA power rating.
Selection Notes
Select this component when a compact laminated transformer with flexible secondary output options is needed. It suits applications requiring 12.6V or 25.2V outputs from a 115V source. Consider the physical size and weight limitations of your enclosure. Evaluate if the 7.5VA power capacity meets the load demands. Compare against other Triad Magnetics models if different voltage ratings or core types are preferred.
Part Context
This model belongs to the Triad Magnetics F-series of power transformers. These components are widely used in industrial and commercial electronics where reliable AC voltage transformation is essential. The F-158XP specifically targets applications needing versatile secondary voltages within a standard through-hole form factor.
Replacement Considerations
Consult official Triad Magnetics documentation for direct substitutes. Verify electrical parameters such as VA rating, voltage ratios, and current capacities before swapping. Ensure mechanical dimensions and pinout compatibility match the existing design.
FAQ
Can the secondary windings be used simultaneously?
Yes, the dual secondary windings can be configured for either parallel operation (12.6V at 600mA) or series operation (25.2V at 300mA).
What is the isolation voltage rating?
The transformer provides an isolation voltage of 1500Vrms between the primary and secondary windings.
