F-160P

Overview

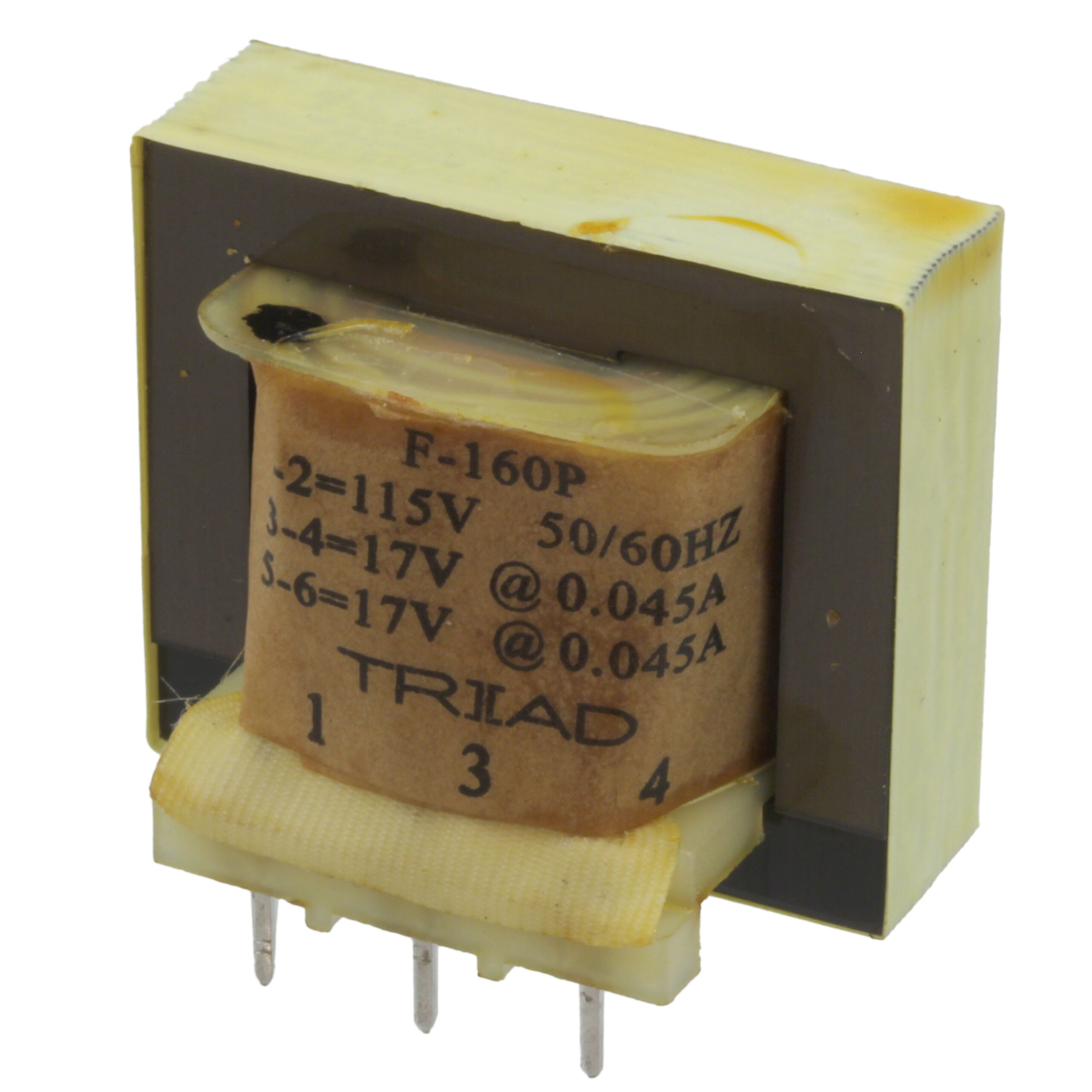

The Triad Magnetics F-160P is a power transformer designed for board mount applications. It features a 1500Vrms isolation voltage and a 1.5VA power rating. The unit utilizes a through-hole mounting style with solder pin terminations. Key electrical specifications include a primary voltage of 115VAC and a secondary configuration of 34.0Vct at 0.045A. The component operates within a temperature range up to +130°C and belongs to the F series.

Feature Summary

• Provides reliable electrical isolation with a 1500Vrms insulation voltage rating.
• Designed for direct printed circuit board integration via through-hole solder pins.
• Capable of operating in high-temperature environments up to +130°C.

Applications

• Industrial control systems requiring isolated power conversion
• Electronic equipment chassis with PCB-based power distribution
• Signal processing circuits needing low-power isolation

Procurement Notes

Verify the specific secondary voltage and current ratings against your schematic, as variations exist within the F series. Confirm that the through-hole footprint matches your PCB layout constraints. Ensure the 1.5VA power rating meets the load requirements of your application. Check RoHS compliance status if environmental regulations apply to your manufacturing process.

Selection Notes

Select this model when a compact, board-mount solution is required for low-power isolation. The 1.5VA rating suits light loads compared to higher-capacity chassis-mounted alternatives. Consider the 1500Vrms isolation barrier for safety-critical designs. Evaluate the thermal performance at +130°C maximum operating temperature for enclosed enclosures.

Part Context

This component is part of the Triad Magnetics F series, which specializes in industrial power transformers. The series offers various configurations for different voltage and power needs. The F-160P specifically addresses applications requiring board-level integration rather than chassis mounting, providing a space-efficient form factor for modern electronics.

Replacement Considerations

Hammond Manufacturing 160H40 is listed as a similar replacement option. Verify mechanical dimensions and electrical parameters before substitution to ensure compatibility with existing PCB footprints and circuit requirements.
