F-162XP

Overview

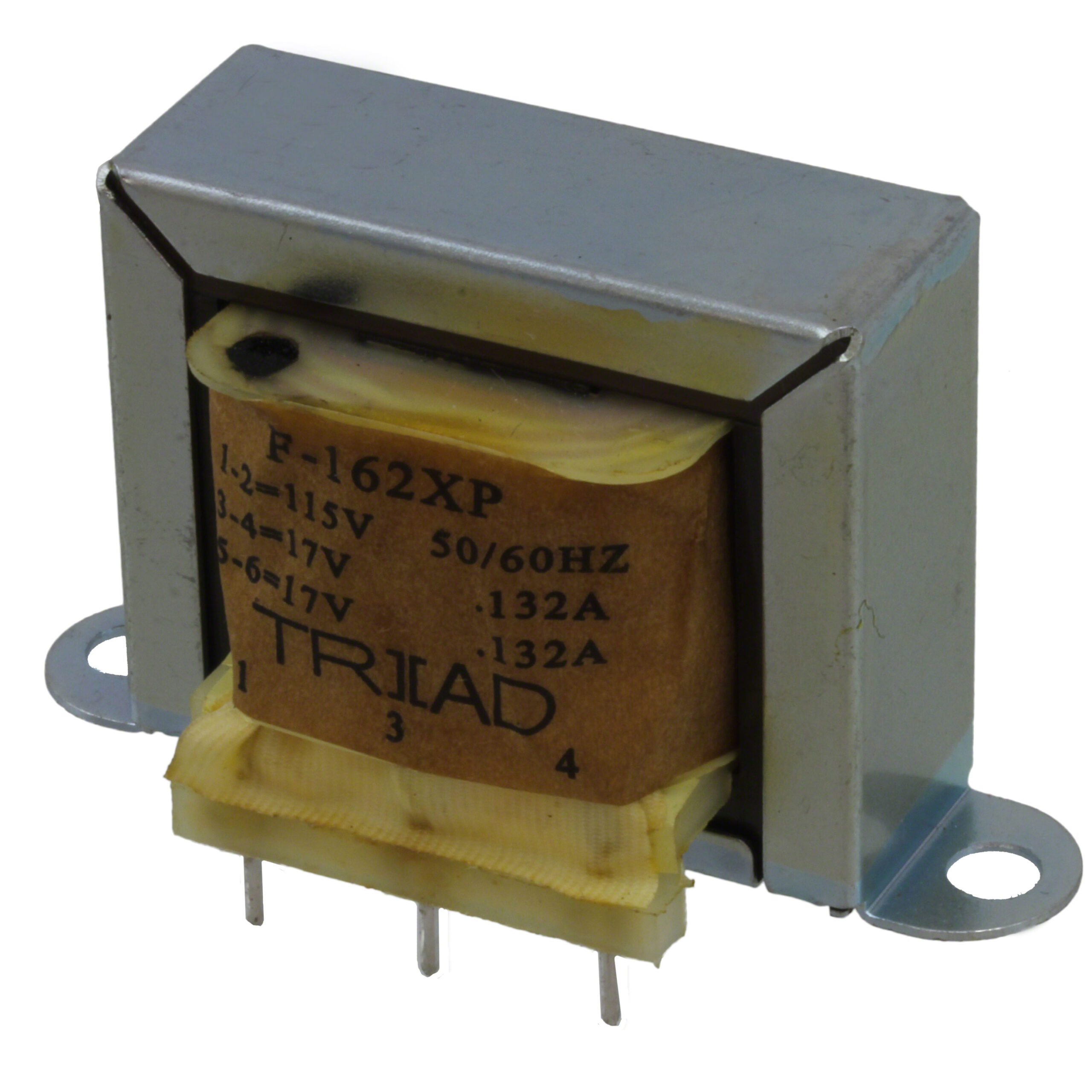

The Triad Magnetics F-162XP is a board-mount power transformer designed for through-hole installation. It features a single primary winding rated at 115 VAC and a dual secondary winding configuration providing 34.0 VCT at 0.132 A. The unit has a power rating of 4.5 VA and includes an integrated flange for secure mounting. Electrical isolation is specified at 1500 Vrms. The component utilizes PC pin termination for direct PCB integration.

Feature Summary

• Dual secondary winding architecture supporting center-tapped applications
• Integrated metal flange for rigid chassis or panel attachment
• High voltage isolation between primary and secondary circuits
• Through-hole PC pin termination for standard PCB assembly

Applications

• Industrial control systems requiring isolated power stages
• Audio equipment utilizing center-tapped rectification
• Electronic instrumentation with specific voltage regulation needs
• General-purpose AC to DC power supply circuits

Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm current electrical tolerances and insulation ratings. Ensure that the physical dimensions, particularly the flange mounting hole spacing, match the target PCB layout constraints. Confirm that the operating temperature range aligns with the environmental conditions of the final assembly. Cross-reference the terminal type to ensure compatibility with the chosen soldering process.

Selection Notes

Select this component when a compact solution with a mounting flange is required for low-power applications. The dual secondary design is suitable for full-wave rectification without additional components. Consider the 4.5 VA power limit to ensure adequate headroom for peak loads. Evaluate the 115 VAC primary requirement against the available input source voltage. The through-hole format dictates the manufacturing method compared to surface-mount alternatives.

Part Context

This transformer belongs to the F series of power transformers from Triad Magnetics. The series focuses on general-purpose industrial and commercial applications. The F-162XP represents a specific variant within this lineup, distinguished by its 34.0 VCT output and flange-mounted form factor. It serves as a fundamental building block for converting mains voltage to lower AC levels for subsequent rectification.

Replacement Considerations

Consult the official Triad Magnetics replacement guide for verified cross-references. No public substitute part numbers are confirmed in the provided data.
