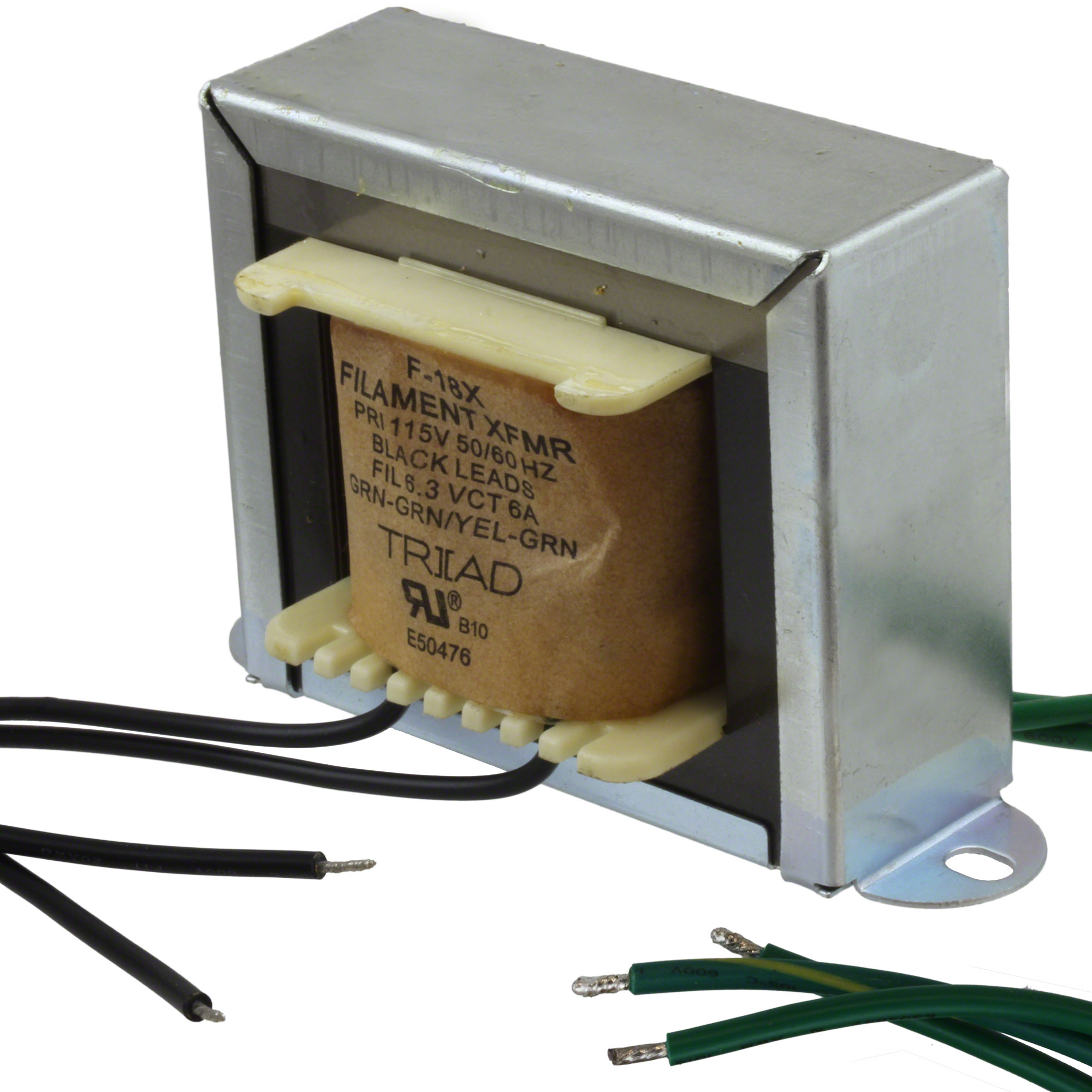

F-18X
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 37.8VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：6A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：37.8VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：101.60mm L x 57.15mm W
- Height - Seated (Max)：65.86mm
- Voltage - Isolation：1500Vrms
- Weight：2.3 lbs (1 kg)
Download product information
Overview
The Triad Magnetics F-18X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated at 115VAC and a center-tapped secondary output of 6.3VCT. The unit delivers a maximum power capacity of 37.8 VA, supporting a secondary current rating of 6.0A. Constructed as a control transformer within the F series, it operates on 50/60 Hz frequencies. The physical dimensions are 1.38 inches in length, 2.06 inches in width, and 1.19 inches in height, weighing approximately 136 grams.
Feature Summary
- Chassis mount construction with integrated wire leads for direct circuit connection
- Single primary winding configuration optimized for standard 115VAC input lines
- Center-tapped secondary design providing symmetrical voltage distribution for rectification
Applications
- Industrial control panel power supplies
- Equipment requiring isolated low-voltage DC conversion
- Signal processing circuits needing stable AC source derivation
Procurement Notes
Verify that the specific order matches the F-18X part number to ensure correct voltage and current ratings. Confirm chassis mounting requirements align with available space constraints. Check lead specifications against existing wiring harnesses. Ensure environmental conditions remain within the specified operational temperature range during installation.
Selection Notes
Select this component when a compact, high-current 6.3VCT supply is required from a 115VAC source. Consider the 37.8 VA power limit to prevent thermal overload. Evaluate the chassis mount style against PCB alternatives if space allows. Verify frequency compatibility with the primary power source before integration into the system design.
Part Context
This transformer belongs to the Triad Magnetics F series, which specializes in industrial control transformers. The series provides various voltage configurations tailored for machinery and equipment. The F-18X specifically addresses applications needing moderate current delivery from a standard mains input, fitting within the broader portfolio of reliable power conversion solutions.
Replacement Considerations
No public confirmed substitute part numbers are documented for this specific model.
