F-192X

Overview

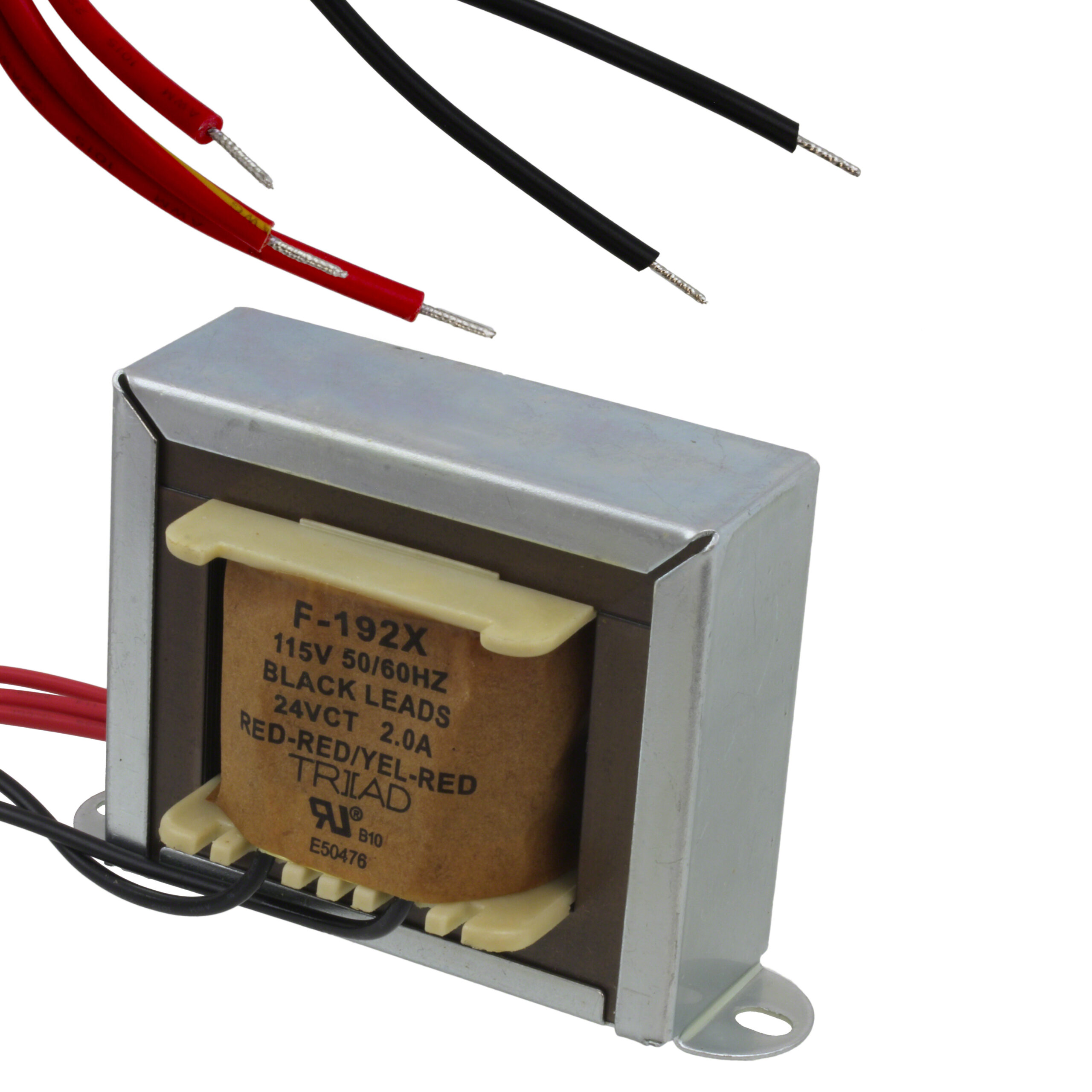

The Triad Magnetics F-192X is an industrial power transformer designed for chassis mounting with wire leads. It features a primary voltage rating of 115 VAC and a secondary output of 24.0Vct at 2.0A. The unit has a power rating of 48 VA and operates at 50/60Hz frequencies. It holds UL approval and complies with RoHS standards, making it suitable for general industrial control applications requiring reliable step-down voltage conversion.

Feature Summary

• Chassis mount construction with integrated wire leads for direct circuit connection
• Bobbin core design optimized for standard 50/60Hz operation
• UL listed certification ensuring compliance with safety standards

Applications

• Industrial control panel power supplies
• Equipment requiring 115V to 24V step-down conversion
• General purpose AC power distribution systems

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and lead lengths prior to integration. Ensure the application environment supports the thermal characteristics defined in the official documentation. Confirm that the 115V primary input matches the local supply voltage to prevent operational failure or damage to the component.

Selection Notes

Select this model when a 48 VA capacity is required for chassis-mounted installations. The 24Vct secondary output suits circuits needing center-tapped rectification or dual polarity supplies. Consider the physical footprint and lead termination style against available board space and wiring constraints compared to alternative series transformers.

Part Context

This component belongs to the Triad Magnetics F-series of industrial power transformers. These units are characterized by laminated core construction and bobbin windings. The series provides standardized voltage conversions for machinery and electronic equipment, emphasizing durability and consistent performance under continuous industrial duty cycles.

Replacement Considerations

Consult official Triad Magnetics cross-reference guides for verified substitutes. Ensure replacement parts match the 48 VA rating, 24Vct secondary specification, and chassis mounting requirements. Verify that any alternative maintains equivalent UL listing status and physical envelope dimensions for seamless retrofitting.
