Product Detailed Parameters
- Description：PWR XFMR LAMINATED 96VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Bulk,Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：24V
- Current - Output (Max)：4A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：96VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：79.38mm L x 71.42mm W
- Height - Seated (Max)：71.42mm
- Voltage - Isolation：1500Vrms
- Weight：4 lbs (1.8 kg)
Download product information
Overview

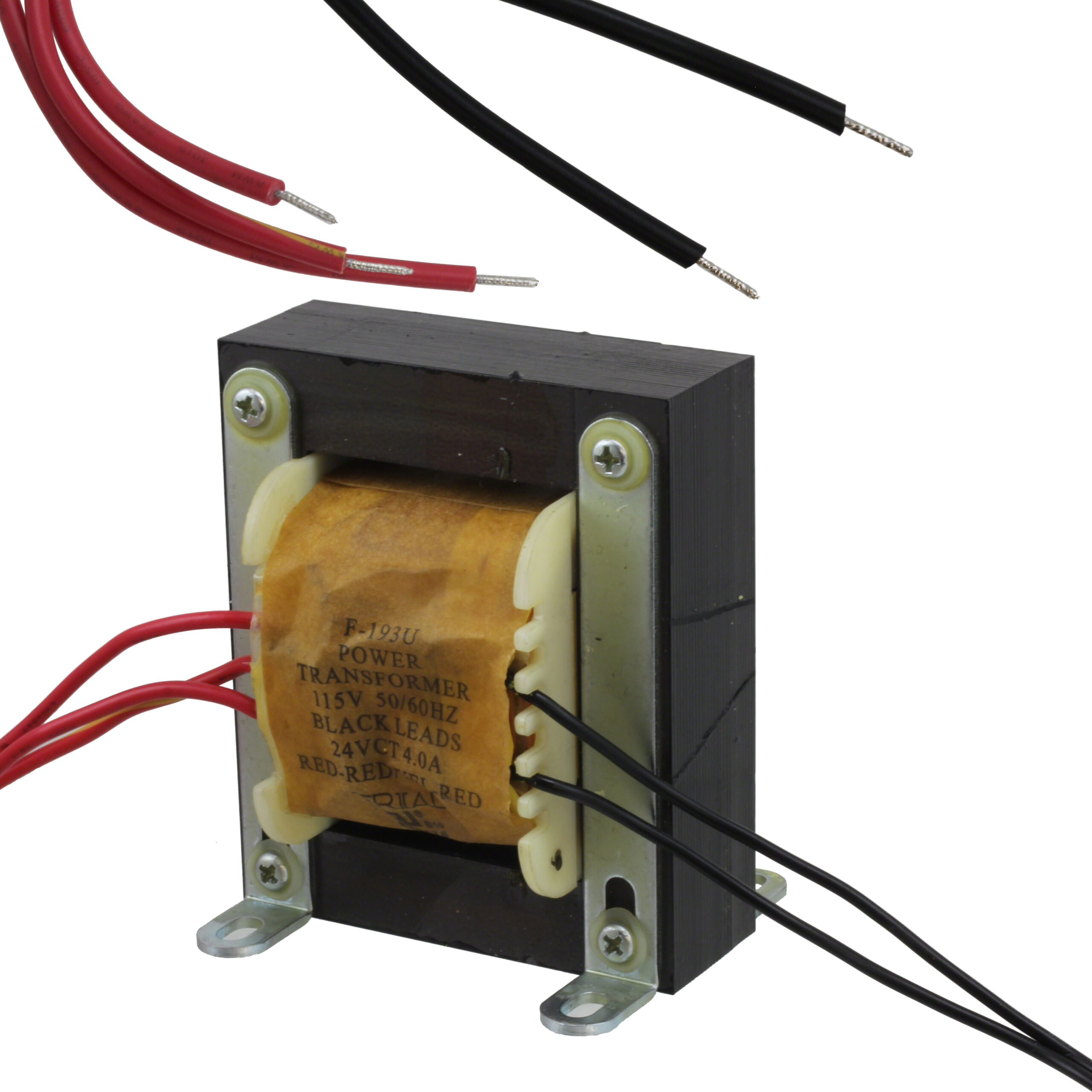

The Triad Magnetics F-193U is a chassis-mount power transformer designed for industrial applications. It features a laminated core construction with a single primary winding rated at 115VAC and a center-tapped secondary output of 24VAC. The unit provides a total power rating of 96VA, supporting a maximum secondary current of 4A. Operating at standard frequencies of 50Hz or 60Hz, the transformer utilizes wire leads for connection and is built to meet UL safety standards.
Feature Summary
- Chassis mount design with wire lead termination
- Laminated core construction for efficient power transfer
- Center-tapped secondary winding configuration
- Compliant with UL safety requirements
Applications
- Industrial control systems
- Power supply circuits
- Rectifier and filter circuit integration
Procurement Notes
Verify that the specific order matches the F-193U part number to ensure correct voltage and current ratings. Confirm that the chassis mounting style and wire lead configuration align with the target equipment design. Check for any updated regulatory compliance documentation required for the intended market. Ensure the 96VA power rating meets the load requirements without exceeding thermal limits during operation.
Selection Notes
Select this component when a 115VAC input and 24VCT output are required for industrial environments. The 96VA rating suits moderate power loads up to 4A. Consider the chassis mount form factor for direct panel installation. Verify that the operating frequency range of 50/60Hz matches the system power source. Ensure sufficient physical space is available for the transformer dimensions.
Part Context
The F-193U belongs to Triad Magnetics' general-purpose power transformer lineup. These units are engineered for robust performance in demanding industrial settings. The series offers various voltage configurations to support diverse power supply needs. This specific model provides a reliable solution for stepping down mains voltage to lower levels for downstream electronics.
Replacement Considerations
No public confirmed substitute part numbers are available.
