F-195X

Overview

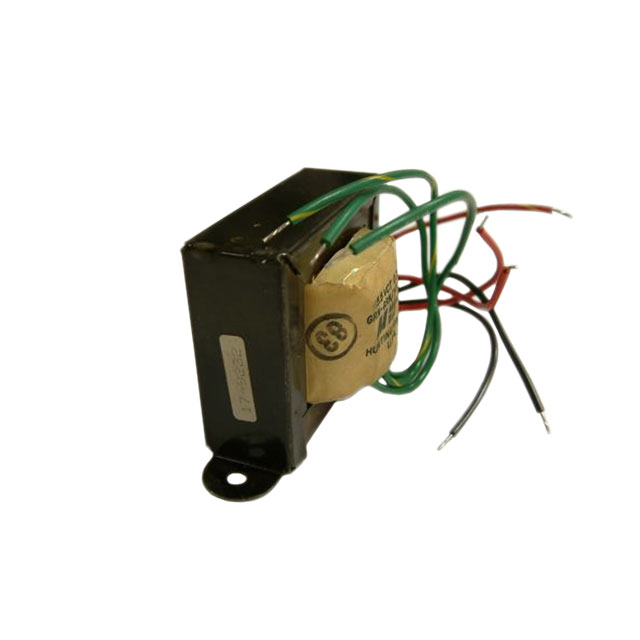

The Triad Magnetics F-195X is a laminated core industrial control transformer designed for chassis mounting with wire leads. It features a dual primary winding configuration supporting 115VAC and 230VAC input voltages. The unit provides two secondary outputs: 32.0V at 0.250A and 15.5V at 0.750A. With a power rating of 19.63VA, it ensures safe operation through 1500Vrms voltage isolation between windings.

Feature Summary

• Dual primary winding design accommodates both 115VAC and 230VAC input requirements
• Provides multiple secondary outputs for diverse circuit voltage needs
• Ensures electrical safety with high voltage isolation capability

Applications

• Industrial control panels requiring specific low-voltage DC rectification inputs
• Equipment needing isolated power supplies for control logic
• Chassis-mounted systems requiring robust transformer isolation

Procurement Notes

Verify the exact secondary voltage configuration against your schematic before ordering. Confirm that the chassis mounting dimensions and lead lengths are compatible with your enclosure design. Ensure the 19.63VA power rating meets the total load requirements of your connected circuits to prevent overheating or performance degradation during continuous operation.

Selection Notes

Select this model when dual secondary voltages are required from a single transformer source. The dual primary winding allows flexibility for different regional line voltages without changing hardware. Consider the physical size constraints as it requires sufficient chassis space for mounting and heat dissipation. Verify that the wire lead termination style matches your assembly process capabilities.

Part Context

This component belongs to the F series of industrial control transformers manufactured by Triad Magnetics. These units are engineered for general-purpose power transformation in industrial environments. The series emphasizes reliability and standard mounting configurations for easy integration into existing equipment designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
