F-1X

Overview

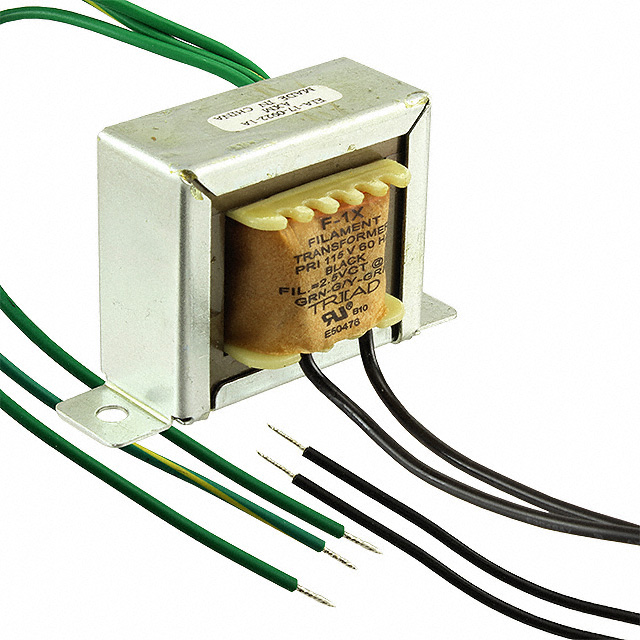

The Triad Magnetics F-1X is a laminated core industrial power transformer designed for chassis mounting. It features a single primary winding rated at 115VAC and a dual secondary winding configuration providing 2.5VCT at 3.0A. The unit has a power rating of 7.5VA, with dimensions of 1.63 inches in length, 2.81 inches in width, and 1.63 inches in height. Termination is achieved via wire leads.

Feature Summary

• Chassis mount construction for secure installation
• Laminated core design for standard efficiency
• Dual secondary winding capability
• Single primary winding input

Applications

• Industrial control systems
• Equipment requiring low voltage AC power
• Chassis-mounted electronic assemblies

Procurement Notes

Verify the specific datasheet version to confirm exact lead times and RoHS compliance status prior to ordering. Ensure the application environment supports the operating temperature range specified in the official documentation. Confirm that the wire lead termination style matches the system wiring requirements.

Selection Notes

Select this component when a 7.5VA isolation transformer is required for 115VAC primary applications. The dual secondary output allows for flexible circuit configurations. Verify that the physical footprint fits within the designated chassis space and that the wire lead termination method is compatible with the assembly process.

Part Context

The F-1X belongs to the F series of industrial control transformers from Triad Magnetics. This series provides various power ratings and voltage configurations for general industrial use. The model utilizes a standard laminated core architecture common in cost-effective power distribution solutions.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalent part numbers. Do not assume cross-compatibility based solely on electrical ratings without verifying mechanical and insulation specifications.
