F-212Z

Overview

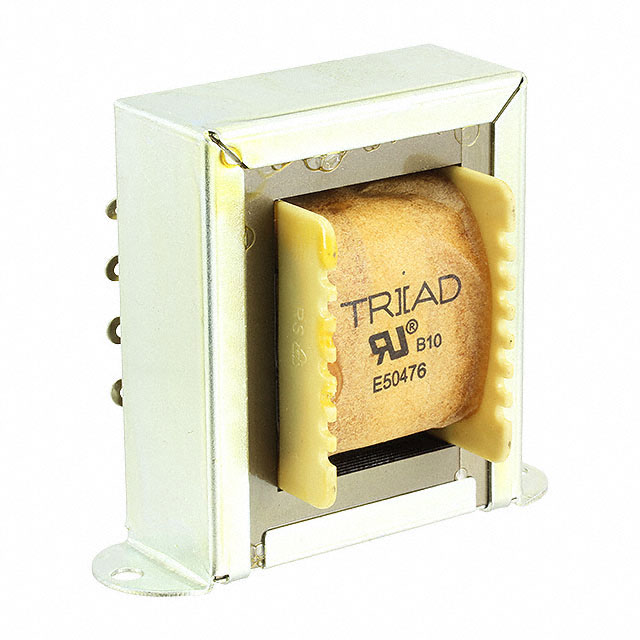

The Triad Magnetics F-212Z is a laminated core power transformer designed for chassis mounting. It features a primary voltage rating of 115V or 230V AC, selectable via parallel connection. The secondary output provides 24V at 1.0A in parallel configuration or 48V center-tapped at 0.5A in series configuration. With a total electrical rating of 24VA and support for 50Hz/60Hz frequencies, this unit offers dielectric isolation suitable for industrial control applications.

Feature Summary

• Provides dual secondary voltage options through configurable winding connections
• Offers high dielectric isolation between primary and secondary circuits
• Designed for secure chassis mounting with lug terminals

Applications

• Industrial control panel power supplies
• Equipment requiring isolated low-voltage AC sources
• Chassis-mounted electronic systems

Procurement Notes

Verify the specific manufacturing date code to ensure compliance with current safety standards. Confirm that the physical dimensions match the available mounting space in the target enclosure. Ensure the input voltage matches the intended primary wiring configuration before installation.

Selection Notes

Select this model when a compact, chassis-mountable solution is required for isolating mains voltage from sensitive control circuitry. Consider the 24VA power limit to ensure it meets the load requirements of the downstream components without exceeding thermal ratings.

Part Context

This component belongs to Triad Magnetics' line of general-purpose power transformers. It serves as an isolating transformer for converting standard line voltages to lower, safer levels for internal equipment operation within larger assemblies.

Replacement Considerations

No direct substitute part numbers are publicly confirmed by the manufacturer for this specific model.
