F-215U

Overview

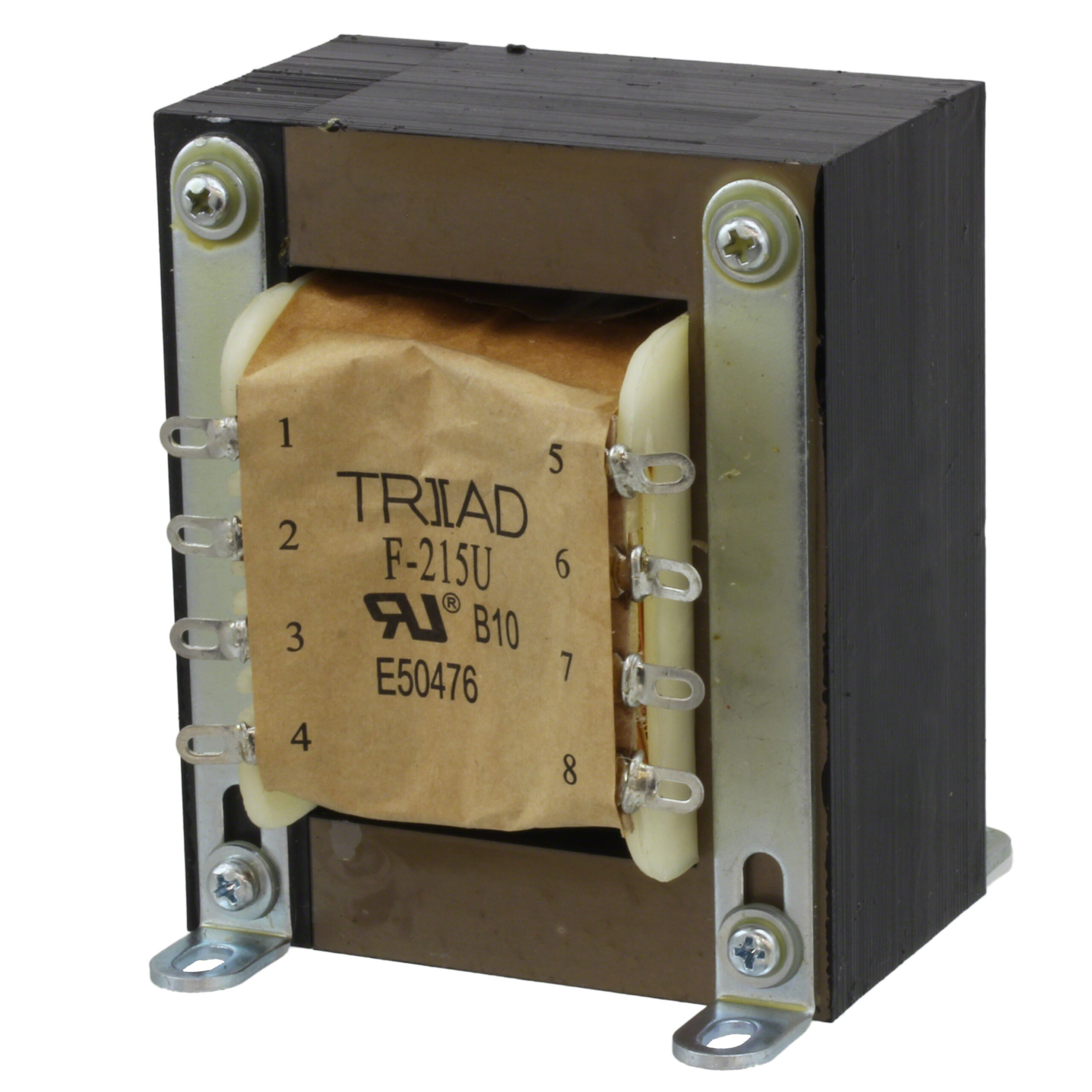

The Triad Magnetics F-215U is a laminated core industrial power transformer designed for chassis mounting with solder flange terminals. It features a 192 VA power rating and supports dual primary voltages of 115 VAC or 230 VAC via parallel or series configurations. The secondary output provides 24 VAC in parallel or 48 VAC in series, delivering up to 4.0 A. This unit offers 1500 Vrms isolation and utilizes an eight-terminal solder flange interface for secure PCB integration.

Feature Summary

• Laminated core construction for efficient power handling
• Dual primary voltage compatibility (115V/230V)
• Configurable secondary outputs (24V/48V)
• Solder flange terminal design for robust mounting

Applications

• Industrial control panels requiring high current
• Equipment needing 115V or 230V input conversion
• Power supplies utilizing 24V or 48V secondary rails

Procurement Notes

Verify the specific winding configuration required for your application, as the F-215U supports multiple primary and secondary connection options. Confirm that the chassis mounting style and solder flange terminals align with your enclosure design and PCB layout requirements before ordering.

Selection Notes

Select this model when a 192 VA capacity is necessary for industrial applications. Ensure the system accommodates the chassis mount form factor and that the PCB traces can handle the 4A secondary current. Consider the physical dimensions and terminal spacing for proper integration into the target equipment.

Part Context

This component belongs to Triad Magnetics' industrial power transformer lineup, characterized by robust laminated cores and high reliability. It serves as a critical interface for stepping down mains voltage to lower levels for sensitive electronic circuits in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
