F-216X-JVP
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：TRANS,PWR,12V,350MA,4.2VA,WIRE
- Series：-
- Mfr：Jameco ReliaPro
- Package：Retail Package
- Type：-
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：-
- Secondary Winding(s)：-
- Center Tap：-
- Power - Max：-
- Mounting Type：-
- Termination Style：-
- Size / Dimension：-
- Height - Seated (Max)：-
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

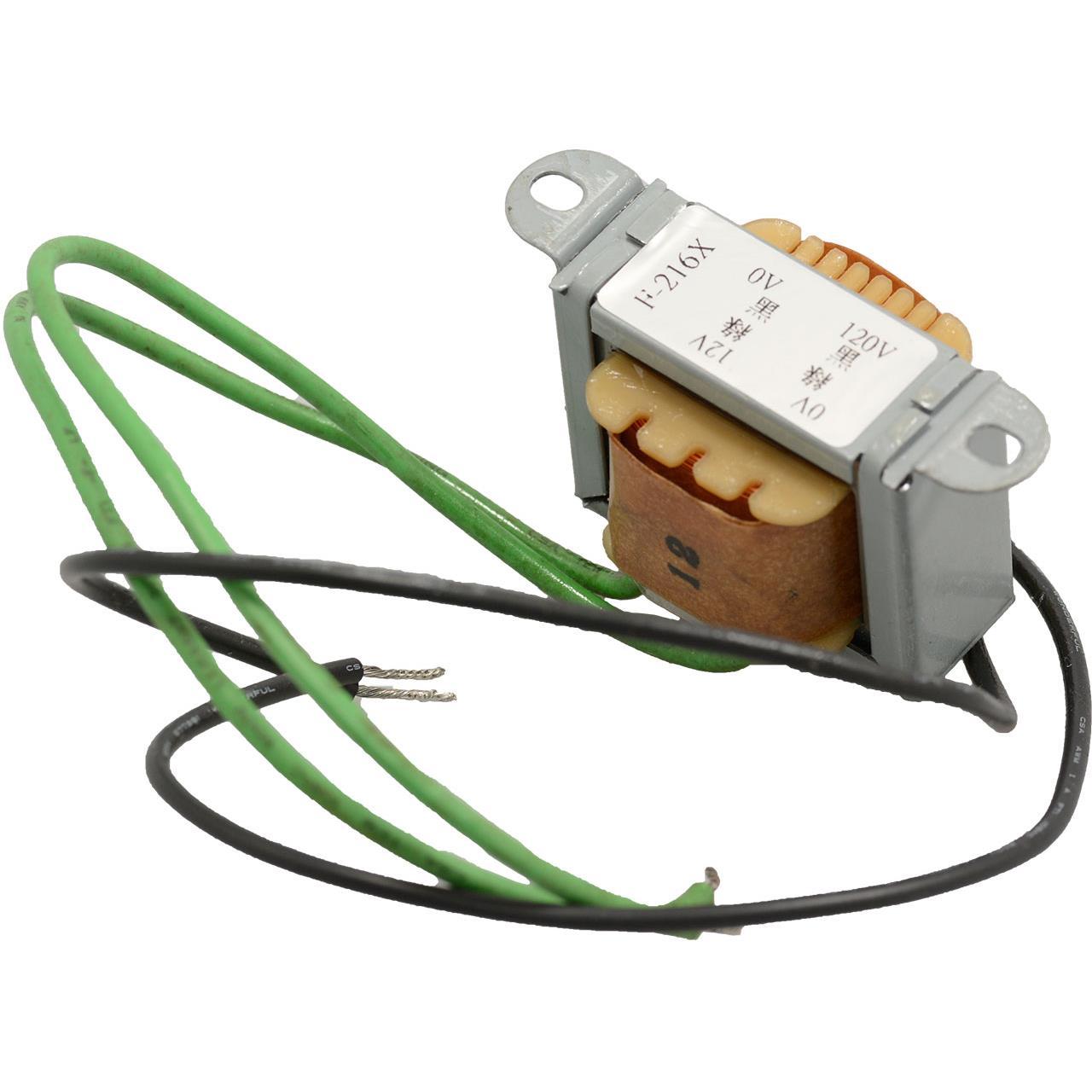

The Jameco ReliaPro F-216X-JVP is a laminated power transformer designed for AC voltage conversion. It features a primary input of 115VAC at 60Hz and provides a secondary output of 12VAC with a current rating of 350mA. The unit has a maximum power capacity of 4.2 VA. It undergoes 100% hipot testing with an insulation rating of 1500V between windings. The component operates within a temperature range of -10°C to +40°C and meets UL and FCC safety standards.
Feature Summary
- Provides isolated AC voltage transformation from 115VAC primary to 12VAC secondary
- Laminated core construction for efficient power transfer
- Undergoes 100% hipot testing ensuring high insulation integrity
- Complies with UL and FCC regulatory safety requirements
Applications
- Low-power electronic device powering
- Control circuit isolation
- Industrial automation signal conditioning
Procurement Notes
Verify the specific part number F-216X-JVP against official Jameco ReliaPro documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing enclosure space and mounting requirements. Check for updated regulatory compliance status such as UL or FCC listings before integration into final products.
Selection Notes
Select this transformer when a 12VAC output is required from a standard 115VAC source. Consider the 4.2 VA power limit to ensure connected loads do not exceed 350mA. Verify that the operating temperature range of -10°C to +40°C suits the installation environment. Confirm that laminated core construction meets noise and size constraints.
Part Context
This component belongs to the Jameco ReliaPro line of industrial electronics, which includes power supplies and control components. The F-216X series represents a range of laminated power transformers designed for general-purpose isolation and voltage step-down applications in commercial and light industrial settings.
Replacement Considerations
Consult Jameco ReliaPro catalogs for direct cross-references. Ensure any substitute matches the 12VAC/350mA output and 115VAC input specifications. Verify equivalent insulation ratings and physical footprint compatibility.
