F-216X

Overview

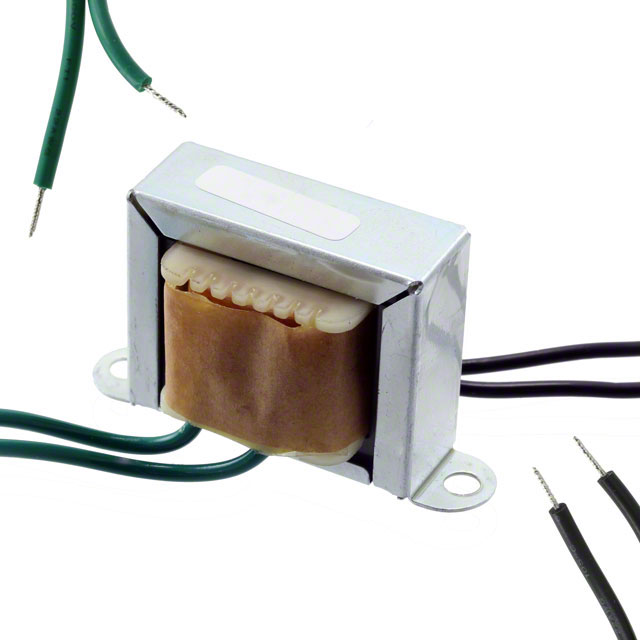

The Triad Magnetics F-216X is a laminated core power transformer designed for industrial applications. It features a primary voltage rating of 115V at 60Hz and provides a secondary output of 12.0V at 0.350A. The unit has a maximum power capacity of 4.2 VA. It utilizes chassis mounting with wire leads for connection. The device operates within standard ambient temperature conditions as specified in official documentation.

Feature Summary

• Chassis mount construction with integrated wire leads for direct circuit integration
• Laminated core design optimized for standard 60Hz power line operation
• Single primary winding configuration supporting 115V input
• Industrial-grade isolation suitable for control panel environments

Applications

• Industrial control panels requiring low voltage AC power
• Equipment needing 12VAC supply from 115VAC mains
• General purpose power transformation in chassis-mounted enclosures

Procurement Notes

Verify the specific datasheet version directly from Triad Magnetics before procurement, as electrical tolerances and physical dimensions may vary between revisions. Confirm that the 115V primary rating matches your system voltage, as this model does not support dual-voltage primary configurations like some other F-series variants. Ensure chassis mounting holes align with your enclosure design prior to ordering.

Selection Notes

Select the F-216X when a fixed 12VAC output at 350mA is required from a 115VAC source. This component is appropriate for space-constrained chassis installations where wire leads are preferred over PCB pins. Consider alternative models if dual-voltage primary capability or higher current ratings are necessary for the application.

Part Context

The F-216X belongs to Triad Magnetics' F series of industrial power transformers. This series typically offers robust performance for general-purpose power conversion. The F-216X specifically targets applications requiring a single secondary voltage tap, distinguishing it from center-tapped or multi-voltage counterparts within the same product family.

Replacement Considerations

Direct substitutes include other Triad Magnetics models with identical 4.2 VA ratings and 12V secondary outputs, such as the F-216 (without the X suffix) if lead style differences are acceptable. Verify pinout and mounting hole compatibility before swapping.
