F-225X

Overview

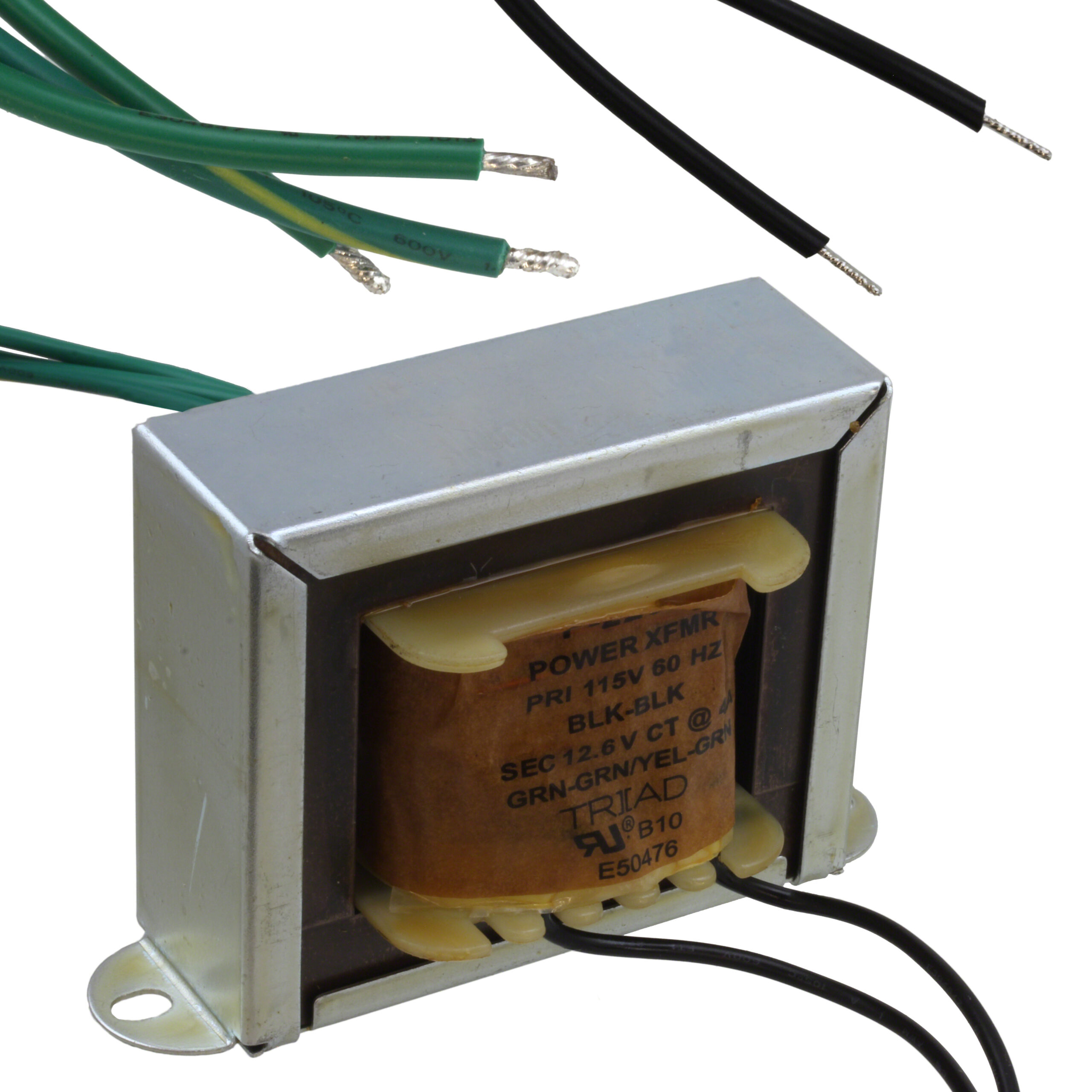

The Triad Magnetics F-225X is a laminated core power transformer designed for chassis mounting. It features a single secondary winding configuration with a maximum power rating of 50.4 VA. The primary voltage is rated at 115V, while the secondary provides 12.6V at full load current of 4.0A. The unit utilizes wire leads for termination and offers an isolation voltage of 1500 VRMS between windings.

Feature Summary

• Laminated core construction for efficient magnetic flux transfer
• Single secondary winding design for dedicated output applications
• Chassis mount style ensures secure physical installation

Applications

• Industrial control systems requiring isolated power
• Equipment needing 115V to 12.6V step-down conversion
• General purpose power supply circuits

Procurement Notes

Verify that the required input voltage matches the 115V primary specification exactly. Confirm that the load current does not exceed the 4.0A secondary limit to prevent overheating. Ensure mechanical clearance accommodates the chassis mount dimensions and wire lead routing requirements before finalizing procurement.

Selection Notes

Select this component when a 50.4 VA capacity is sufficient for the target application. Consider the 115V primary constraint if operating in regions with different standard voltages. Evaluate the 1500 VRMS isolation level against safety standards required by the end equipment design.

Part Context

This model belongs to the Triad Magnetics F series of industrial control transformers. These units are engineered for robust performance in demanding environments. The F-225X specifically addresses needs for moderate power levels with reliable electrical isolation.

Replacement Considerations

Check datasheets for alternative models offering identical 12.6V secondary output and comparable VA ratings. Verify that any substitute maintains the same chassis mount footprint and wire lead termination style.
