F-229X

Overview

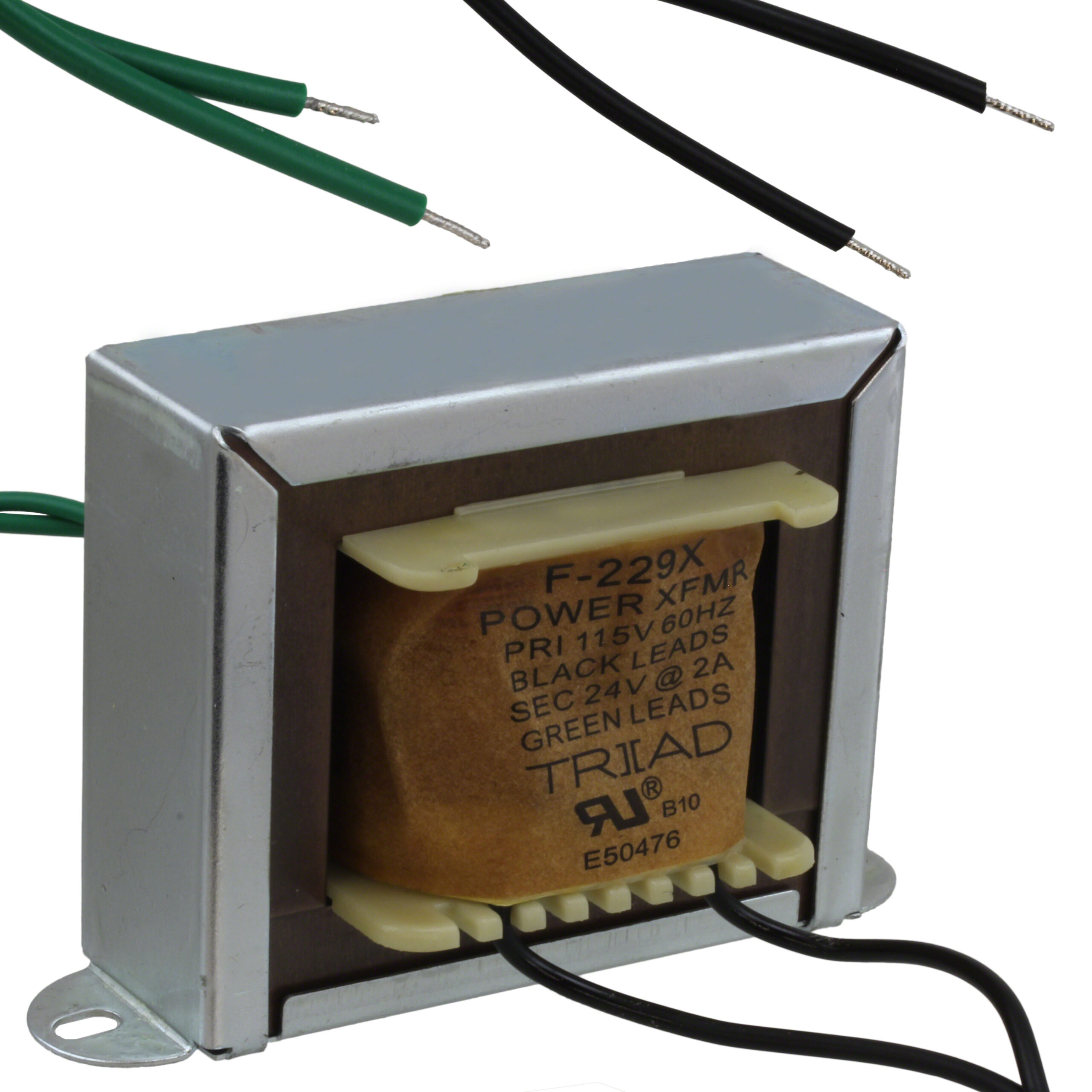

The Triad Magnetics F-229X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated for 115V at 60Hz and a single secondary winding providing 24V at 2.0A. The unit has a maximum power rating of 48.0 VA and offers 1500Vrms dielectric isolation between windings. Constructed as an industrial control transformer, it utilizes a laminated core design suitable for general industrial applications requiring reliable voltage step-down.

Feature Summary

• Chassis mount construction with wire lead termination
• Single primary to single secondary winding configuration
• Industrial-grade power handling capabilities

Applications

• Industrial control panels
• Equipment requiring 24VAC power supply
• General industrial machinery

Procurement Notes

Verify the specific datasheet version for the most current electrical specifications and mechanical dimensions before integration. Confirm that the 115V primary input matches the facility's power distribution system. Ensure chassis mounting provisions align with the enclosure design requirements. Check for any updated regulatory compliance certifications relevant to the target market.

Selection Notes

Select this component when a robust 48VA industrial transformer is required for chassis installation. The 24V output suits systems needing standard low-voltage AC power. Consider the physical dimensions and weight constraints of the assembly. Evaluate if the wire lead termination method fits the internal wiring strategy compared to PCB mount alternatives.

Part Context

This part belongs to the Triad Magnetics F series of industrial power transformers. These units are characterized by their durability and suitability for harsh industrial environments. The series provides various voltage and power combinations to support diverse control circuit needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
