F-250X

Overview

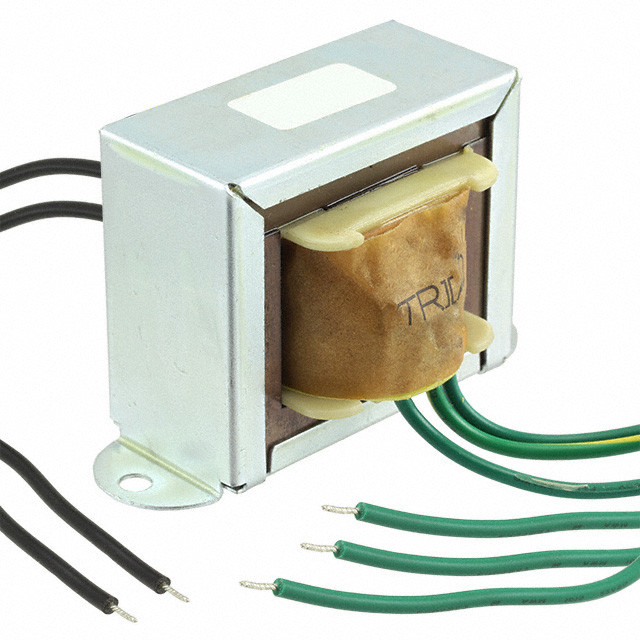

The Triad Magnetics F-250X is a laminated core power transformer designed for industrial applications. It features a chassis mount configuration with wire leads for secure installation. The unit operates with a primary voltage rating of 115VAC and provides a secondary output of 14.0VCT at a current capacity of 1.0A. With a power rating of 18.9VA, it supports dual primary and dual secondary winding configurations to accommodate various input requirements. The transformer includes UL approval for safety compliance in international markets.

Feature Summary

• Chassis mount design with wire leads for robust industrial integration
• Dual primary and dual secondary winding flexibility for varied voltage inputs
• UL approved for safety compliance in global industrial environments

Applications

• Industrial control systems requiring isolated power conversion
• Equipment needing 115VAC to 14VCT step-down transformation
• Chassis-mounted power supplies for electronic instrumentation

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before purchase. Confirm that the chassis mounting style and wire lead termination match your assembly process. Ensure the 115VAC primary input aligns with your available power source. Check for UL certification marks if operating in regulated regions. Cross-reference part numbers carefully as similar models may have different electrical characteristics.

Selection Notes

Select this model when a 18.9VA power rating is sufficient for the load. Consider the chassis mount form factor if space constraints require a rigid installation. Evaluate the 14.0VCT secondary output to ensure compatibility with downstream circuitry. Compare against other Triad Magnetics series like VPL or FP if different mounting styles are needed. Verify thermal performance within the intended operating environment.

Part Context

The F-250X belongs to Triad Magnetics' industrial power transformer lineup. It serves as a standard solution for converting mains voltage to lower AC levels. Similar models include the F-25X and F-254X, which offer varying power ratings and voltage outputs. These components are commonly used in legacy and modern industrial equipment requiring reliable isolation.

Replacement Considerations

The 266J14 is a confirmed cross-reference substitute for the F-250X. Verify mechanical dimensions and pinout compatibility before replacement. Other models in the F-series may serve as alternatives if electrical parameters differ slightly.
