Product Detailed Parameters
- Description：PWR XFMR LAMINATED 18.9VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：12.6V
- Current - Output (Max)：1.5A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：18.9VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview

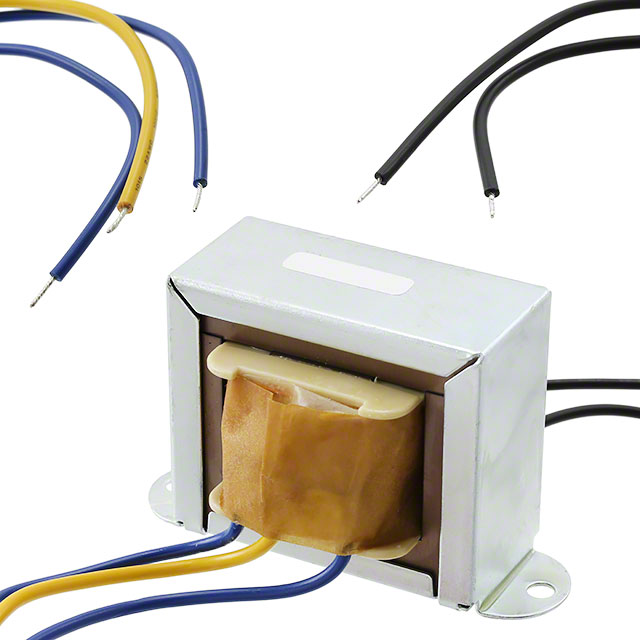

The Triad Magnetics F-25X is a chassis-mount power transformer featuring a laminated core and single secondary winding configuration. It operates with a 115V primary input and provides a 14V secondary output at full load, supporting up to 2A current capacity. The unit delivers a maximum power rating of 28VA and includes a center tap on the secondary side. Electrical isolation is rated at 1500Vrms between windings. Physical dimensions are approximately 93.65mm in length, 49.0mm in width, and 57.15mm in maximum height. Termination is achieved via wire leads for secure mounting.
Feature Summary
- Chassis-mount construction with wire lead termination
- Laminated core design for efficient power transfer
- Single secondary winding with center tap availability
- Standard 115V primary voltage compatibility
Applications
- Industrial control systems requiring isolated power
- Electronic equipment chassis integration
- General-purpose power supply circuits
Procurement Notes
Verify the specific suffix (e.g., X or U) against official Triad Magnetics documentation to confirm exact electrical parameters such as secondary voltage and current ratings. Ensure the required mounting style and lead configuration match the target application design specifications before ordering.
Selection Notes
Select this component when a robust chassis-mounted solution with a laminated core is required for moderate power levels around 28VA. Confirm that the 115V primary input aligns with the available line voltage and that the physical envelope fits within the designated chassis space constraints.
Part Context
The F-25X belongs to the Triad Magnetics F-series of industrial power transformers. This series typically offers standard voltages and mounting options suitable for general electronic applications. The model represents a specific variant within the broader portfolio of chassis-mount transformers designed for reliability and ease of installation.
Replacement Considerations
Consult official manufacturer cross-reference lists for verified substitutes. Generic equivalents may differ in isolation ratings, core type, or physical footprint.
