F-260U

Overview

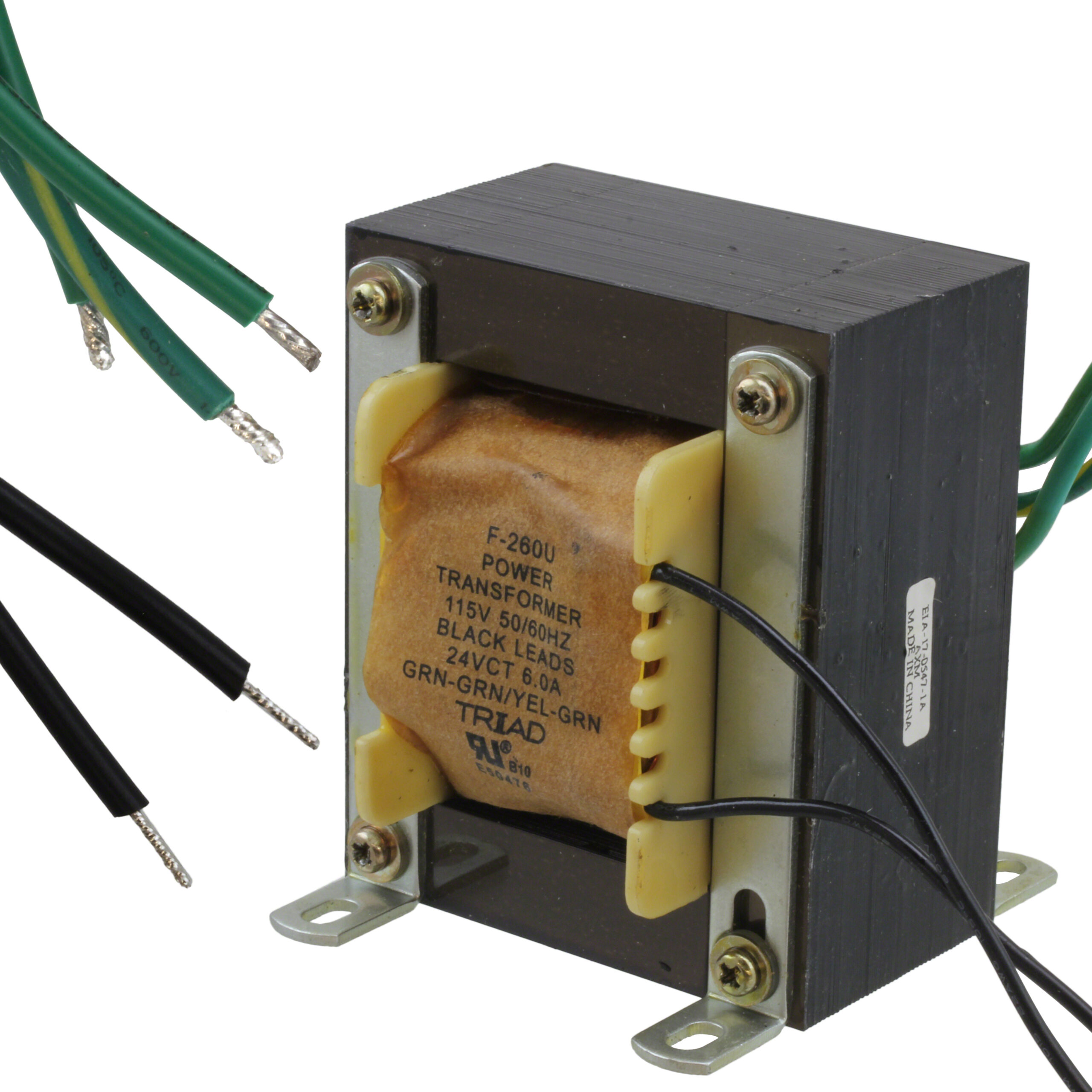

The Triad Magnetics F-260U is an industrial power transformer designed for chassis mounting. It features a single primary winding rated for 115VAC input and a center-tapped secondary output providing 24.0V at 6.0A. The unit has a power rating of 144 VA and utilizes wire leads for termination. It undergoes 100% hipot testing with 1500V insulation between windings to ensure reliability in industrial control applications.

Feature Summary

• Chassis mount construction with wire lead terminations
• Center-tapped secondary winding configuration
• Single primary winding optimized for 115VAC operation
• Industrial-grade isolation via hipot testing

Applications

• Industrial control systems
• Power supply circuits requiring isolated AC voltage
• Equipment needing 24V center-tapped power distribution

Procurement Notes

Verify the specific input voltage requirement, as this model is specified for 115VAC primary operation. Confirm that the chassis mounting style and wire lead termination method are compatible with the target enclosure design. Ensure the 144 VA power rating meets the load demands of the application circuit.

Selection Notes

Select this component when a dedicated 115VAC input transformer is required for industrial environments. The center-tapped output is suitable for full-wave rectification or split-rail configurations. Consider physical dimensions and weight constraints associated with its chassis mount form factor during system integration.

Part Context

The F-260U belongs to Triad Magnetics' industrial power transformer lineup. These components provide galvanic isolation and voltage transformation for heavy-duty equipment. The series is characterized by robust construction and compliance with industrial safety standards for continuous operation.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
