F-261U

Overview

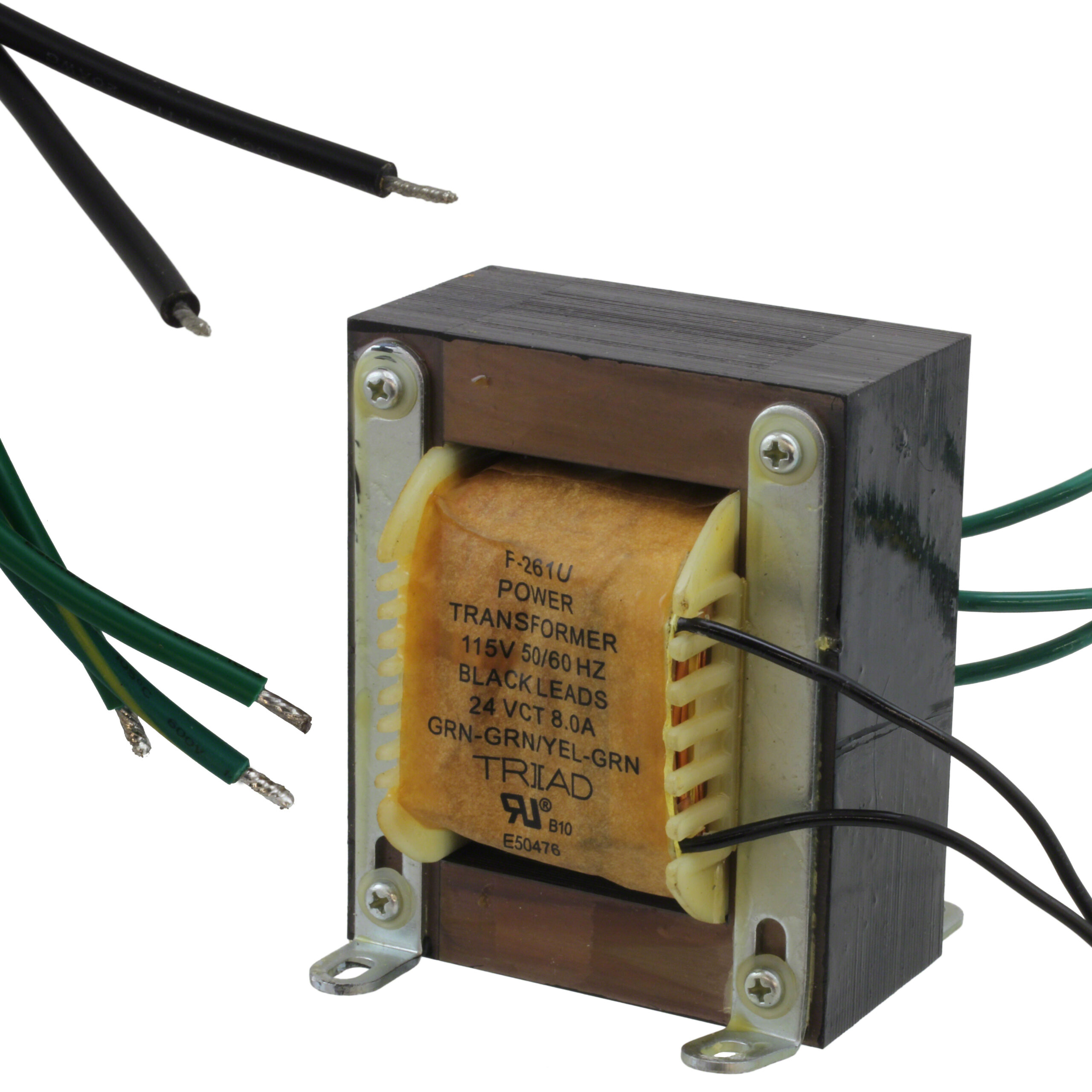

The Triad Magnetics F-261U is an industrial power transformer designed for chassis mount installation with wire lead termination. It features a laminated core construction and operates at 50/60Hz frequencies. The unit provides a primary voltage of 115VAC and delivers a secondary output of 24.0VCT at 8.0A. With a rated capacity of 192VA, this component serves as a reliable step-down solution for various electronic applications requiring stable AC power conversion.

Feature Summary

• Chassis mount design with wire leads for easy enclosure integration
• Laminated core construction for efficient power transformation
• Industrial-grade reliability for continuous operation

Applications

• Electronic control panels
• Industrial equipment power supplies
• Rectifier and filter circuits

Procurement Notes

Verify the specific datasheet version to confirm compliance with current safety standards and regulatory requirements. Ensure that the operating environment temperature range aligns with the transformer's thermal specifications. Confirm that the mounting hardware supports the chassis mount configuration and that wire lead lengths meet the system layout requirements before finalizing procurement.

Selection Notes

Select the F-261U when a 115VAC input requires a 24VCT output at up to 8.0A. Consider the 192VA rating to ensure sufficient power headroom for the load. Evaluate the chassis mount form factor against available space in the target enclosure. Verify frequency compatibility with the source power supply to prevent performance degradation or overheating issues during operation.

Part Context

This component belongs to the Triad Magnetics industrial power transformer series, which offers a wide range of voltages and configurations. The F-261U specifically addresses applications needing robust chassis-mounted solutions. It complements other models in the lineup by providing standardized electrical characteristics suitable for general-purpose industrial electronics and control systems.

Replacement Considerations

Consult official Triad Magnetics documentation for direct cross-reference part numbers. Ensure any substitute matches the 115V primary, 24VCT secondary, and 8.0A current ratings. Verify physical dimensions and mounting hole patterns to maintain chassis compatibility. Confirm that the replacement maintains the same laminated core technology and wire lead termination style.
