Product Detailed Parameters

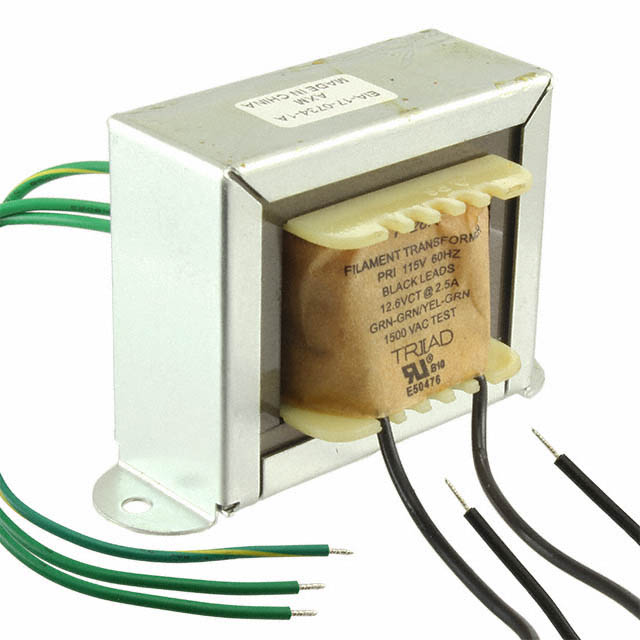

- Description：PWR XFMR LAMINATED 31.5VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：12.6V
- Current - Output (Max)：2.5A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：31.5VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：93.65mm L x 50.80mm W
- Height - Seated (Max)：57.94mm
- Voltage - Isolation：1500Vrms
- Weight：1.6 lbs (725.7 g)
Download product information
Overview
The Triad Magnetics F-26X is an industrial control transformer designed for chassis mounting. It features a single primary winding and a single secondary winding configuration. The unit accepts input voltages of 115 VAC or 230 VAC. The secondary output provides 24 V at a current rating of 0.4 A, resulting in a power rating of 9.6 VA. Physical dimensions are 1.5 inches in length, 2.81 inches in width, and 1.63 inches in height. The component utilizes wire leads for termination and weighs approximately 362.874 grams.
Feature Summary
- Chassis mount construction with wire lead terminations
- Dual primary winding capability for 115/230 VAC input selection
- Single secondary winding providing isolated 24 VAC output
Applications
- Industrial control panel power supply
- Equipment requiring 24 VAC control circuitry
- Chassis-mounted signal isolation
Procurement Notes
Verify the specific datasheet version to confirm compliance with current safety standards and regulatory requirements. Ensure that the mechanical footprint and terminal spacing match the design constraints. Confirm that the thermal characteristics align with the intended enclosure environment. Cross-reference the part number suffixes if alternative packaging options are required.
Selection Notes
Select this model when a compact 9.6 VA transformer is needed for 24 VAC applications. The dual primary winding allows flexibility for different line voltage regions. Consider the physical dimensions and weight for chassis integration. Verify that the wire lead termination method suits the assembly process compared to PCB mount alternatives.
Part Context
The F-26X belongs to the F series of industrial control transformers from Triad Magnetics. This series is characterized by robust construction suitable for demanding environments. The component serves as a step-down transformer for converting standard line voltages to lower control voltages. It is distinct from audio transformers and medical-grade variants within the manufacturer's portfolio.
Replacement Considerations
Consult official substitution guides for direct equivalents. Verify electrical parameters such as VA rating, voltage ratios, and frequency response. Check mechanical compatibility including mounting style and terminal type.
