F-271U

Overview

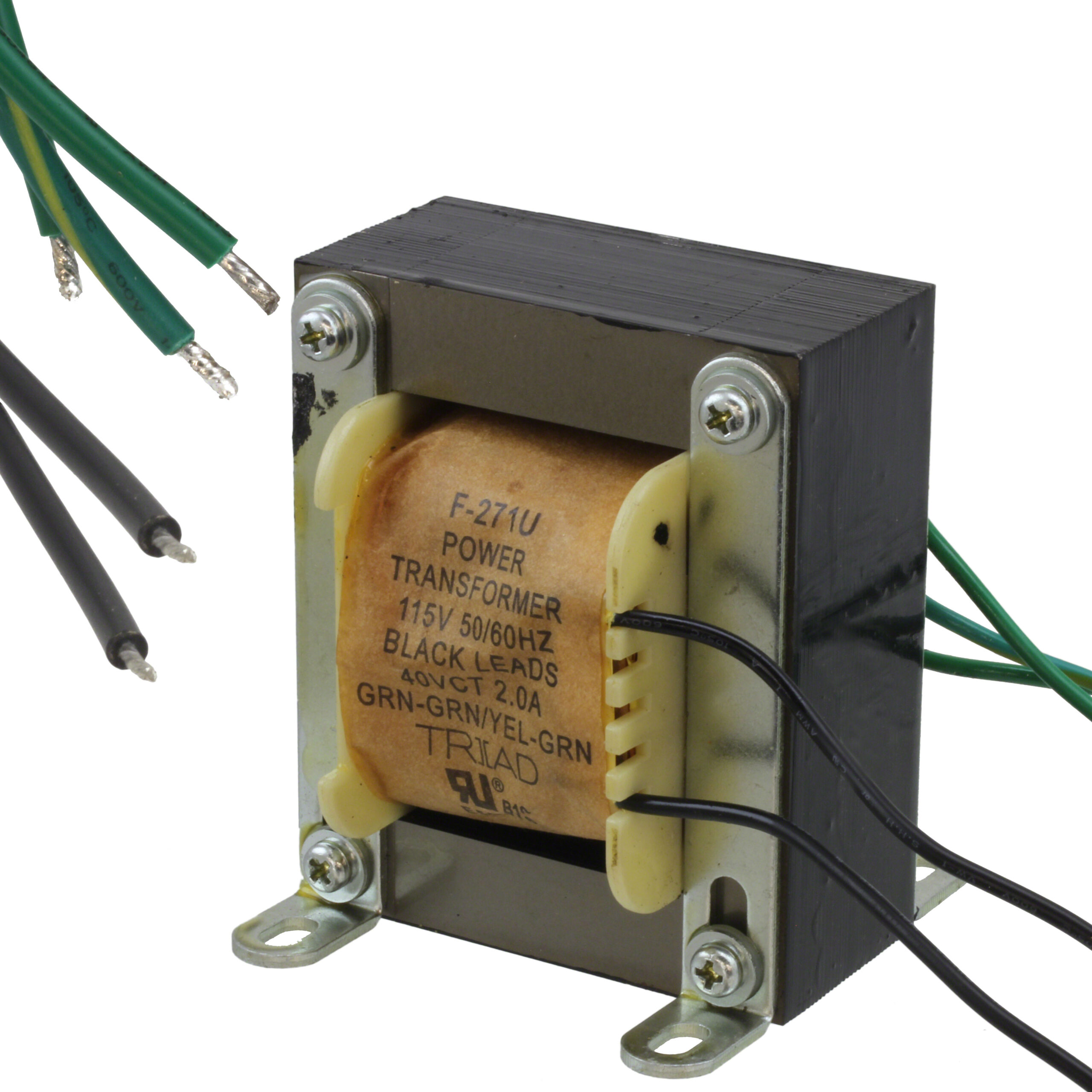

The Triad Magnetics F-271U is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated for 115VAC input and a center-tapped secondary output of 40.0VCT at 2.0A maximum current. The unit delivers an apparent power rating of 80VA and operates at standard 50/60Hz frequencies. Physical dimensions include a chassis mount style with wire leads for connection, ensuring secure installation in industrial control applications requiring reliable voltage transformation.

Feature Summary

• Laminated core construction for efficient magnetic flux transfer
• Single primary winding configuration for standard AC line voltages
• Center-tapped secondary output providing symmetrical voltage distribution
• Chassis mount design with integrated wire leads for direct integration

Applications

• Industrial control panel power supplies
• Equipment requiring isolated AC power sources
• Rectifier circuit inputs for DC power conversion
• General purpose power transformation in machinery

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the chassis mounting style and wire lead termination are compatible with your enclosure design. Ensure the 80VA power rating meets the load demands of your application to prevent overheating or performance degradation during continuous operation.

Selection Notes

Select this model when a dedicated 115VAC to 40VCT step-down transformation is required. Consider the 80VA capacity to ensure adequate headroom for peak loads. The chassis mount form factor is suitable for open-frame installations where space constraints allow for external mounting. Verify compatibility with existing wiring harnesses due to the fixed lead configuration.

Part Context

This component belongs to the Triad Magnetics industrial power transformer series. These units are engineered for durability and consistent performance in demanding environments. The F-271U specifically addresses needs for moderate power isolation and voltage reduction in commercial and industrial equipment sectors.
