F-275U

Overview

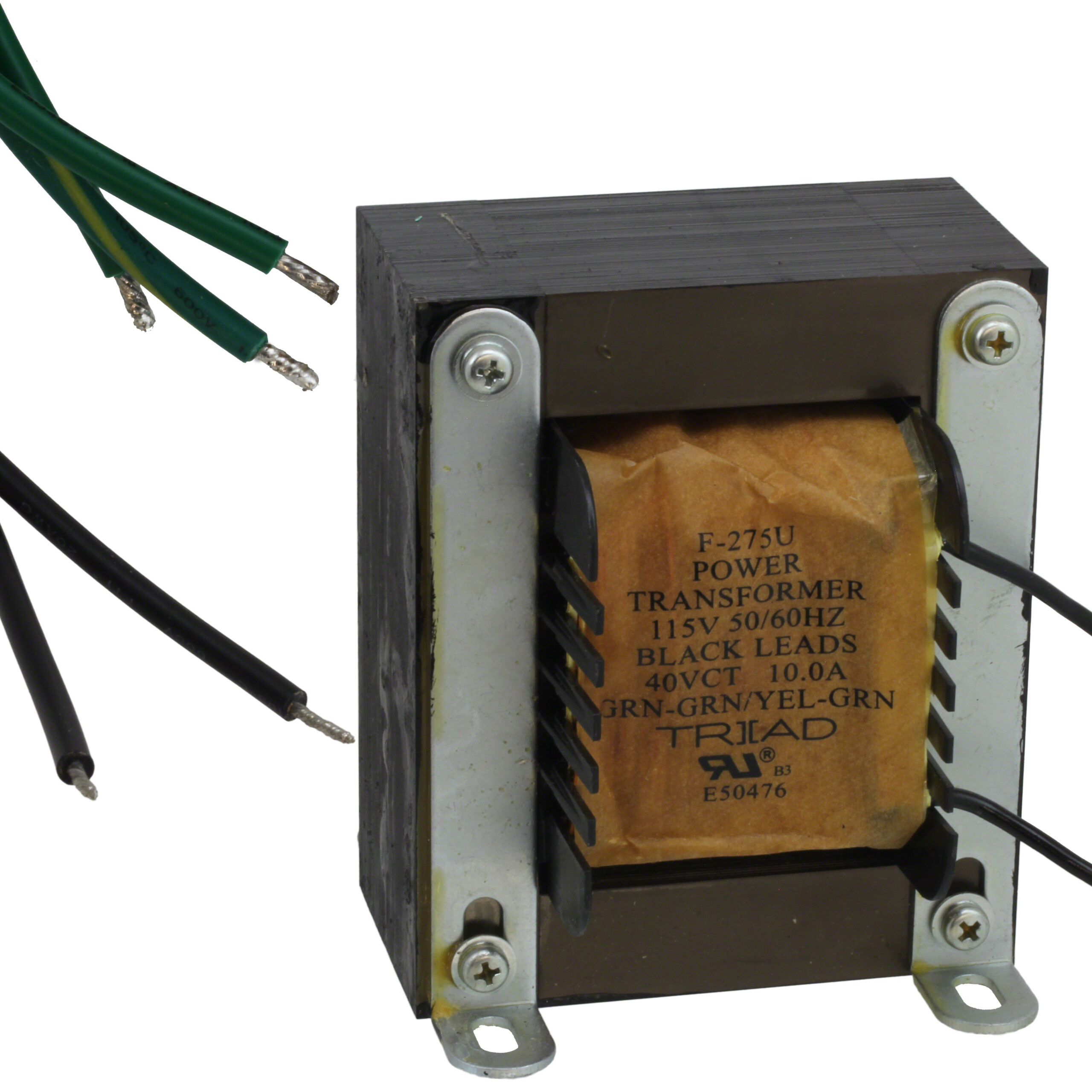

The Triad Magnetics F-275U is a chassis-mount industrial power transformer designed for high-capacity applications. It features a single primary winding rated at 115VAC and a center-tapped secondary output of 40.0VCT at 10.0A, delivering a total power rating of 400VA. The unit utilizes wire leads for termination and supports both 50Hz and 60Hz input frequencies. Constructed for robust industrial environments, it operates within a temperature range of -40°C to +130°C. The transformer meets UL and cUL safety standards, ensuring compliance with North American electrical regulations for heavy-duty control and power systems.

Feature Summary

• High-power 400VA capacity for demanding industrial loads
• Chassis mounting style with wire lead terminations
• Single primary to dual secondary voltage configuration
• Compliant with UL and cUL safety standards

Applications

• Industrial machinery control panels
• Heavy-duty power supply units
• Manufacturing equipment transformers
• Commercial HVAC systems

Procurement Notes

Verify the specific suffix or variant against the official Triad Magnetics datasheet to ensure compatibility with required voltage tolerances and insulation classes. Confirm that the chassis mounting dimensions and lead lengths match the enclosure design. Check for updated regulatory certifications such as UL or cUL marks relevant to the target market. Ensure the operating temperature range aligns with the environmental conditions of the installation site to prevent thermal degradation.

Selection Notes

Select this component when a high-current, single-phase transformation is required for industrial infrastructure. The 400VA rating distinguishes it from lower-power control transformers, making it suitable for driving substantial loads directly. Consider the physical footprint and chassis mounting requirements during the mechanical design phase. Evaluate the thermal management needs given the high power density and potential heat generation under full load conditions in enclosed spaces.

Part Context

The F-275U belongs to Triad Magnetics' line of industrial power transformers, which are engineered for reliability in harsh operating conditions. This series typically includes various power ratings and voltage configurations to support diverse automation and manufacturing needs. As a chassis-mount device, it is intended for integration into larger assemblies rather than printed circuit board mounting, providing a stable and durable solution for critical power distribution tasks.

Replacement Considerations

Consult the manufacturer's cross-reference guide for direct equivalents. Verify that any substitute part matches the 400VA power rating, 115V primary, and 40VCT secondary specifications exactly. Ensure the replacement maintains the same chassis mounting form factor and terminal type to avoid mechanical redesign.
