Product Detailed Parameters
- Description：PWR XFMR LAMINATED 120VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：60V
- Current - Output (Max)：2A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：120VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：85.73mm L x 79.38mm W
- Height - Seated (Max)：95.25mm
- Voltage - Isolation：1500Vrms
- Weight：5.6 lbs (2.5 kg)
Download product information
Overview

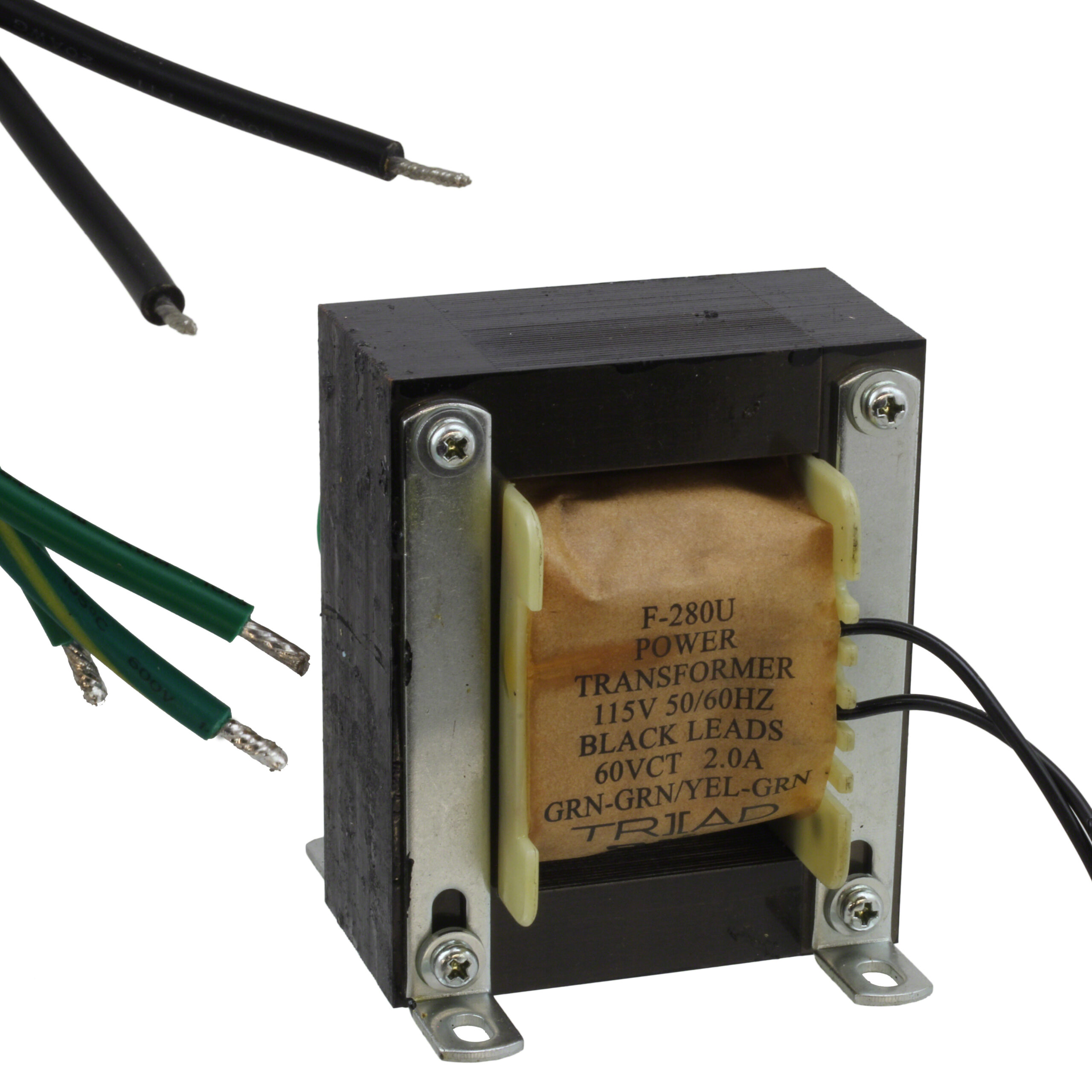

The Triad Magnetics F-280U is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated at 115V and a single secondary winding providing 60V at 2.0A. The unit operates within a frequency range of 50Hz to 60Hz and delivers a power rating of 120VA. Physical dimensions support industrial integration, with leads provided for connection.
Feature Summary
- Laminated core construction for efficient power transfer
- Single primary and single secondary winding configuration
- Chassis mount design with integrated leads
Applications
- Industrial control systems requiring 115V input
- Equipment needing 60V AC secondary supply
- Chassis-mounted power distribution units
Procurement Notes
Verify the specific lead configuration and insulation class against your enclosure requirements before ordering. Confirm that the 115V primary voltage aligns with your local mains supply standards. Ensure the chassis mounting holes match your mechanical design specifications. Cross-reference the 120VA rating with your total system load to prevent overheating. Check for any regional certification marks required for your target market.
Selection Notes
Select this component when a dedicated 115V to 60V step-down transformation is required in a fixed installation. The chassis mount style suits applications where space is constrained but thermal dissipation via the enclosure is available. Consider the 120VA capacity to ensure it meets the peak current demands of the connected load without saturation.
Part Context
This transformer belongs to Triad Magnetics' industrial power transformer lineup. It serves as a standard solution for converting line voltage to lower AC levels in machinery. The F-series designation indicates its form factor and mounting style within the manufacturer's catalog.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Verify electrical compatibility if considering alternatives from other manufacturers.
