F-28U

Overview

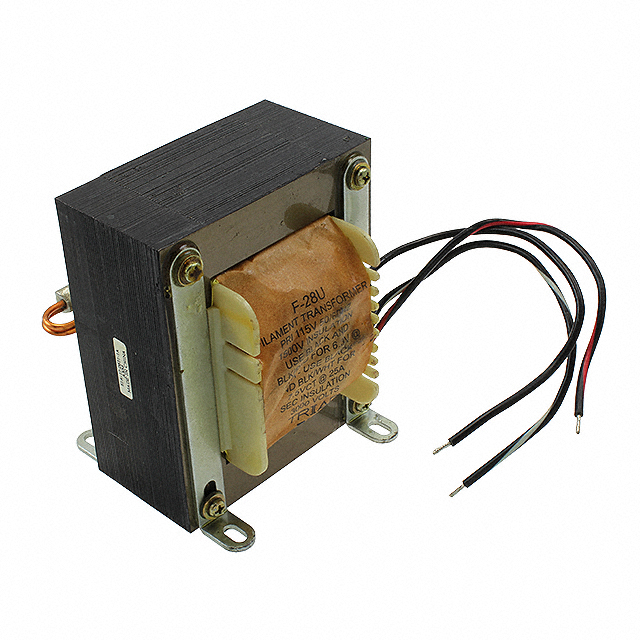

The Triad Magnetics F-28U is a chassis-mount power transformer with a 187.5 VA rating. It features a single primary winding for 115V input and dual secondary outputs of 6.3Vct at 25.0A and 7.5Vct at 25.0A. The unit utilizes wire leads and lugs for termination, ensuring secure connections in industrial environments. Designed for 50Hz/60Hz operation, it provides high voltage isolation of 3000Vrms to protect against electrical shock. This component is classified as an industrial control transformer suitable for demanding applications requiring robust performance.

Feature Summary

• Provides high voltage isolation of 3000Vrms for enhanced safety
• Features dual secondary windings for versatile output configurations
• Utilizes chassis mount style with wire leads and lugs

Applications

• Industrial control systems
• Power supply units
• Audio equipment transformers

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and terminal configurations before integration. Ensure that the chassis mounting requirements align with the design specifications. Confirm that the operating frequency matches the system's 50Hz or 60Hz standard. Validate insulation ratings against environmental conditions. Cross-reference the part number with official manufacturer documentation to avoid substitution errors.

Selection Notes

Select this model when a 187.5 VA capacity is required for chassis-mounted installations. Consider the dual secondary voltages if multiple low-voltage rails are needed from a single source. Evaluate the 3000Vrms isolation requirement for safety-critical applications. Compare physical footprint constraints against available space. Assess thermal management needs based on the continuous load current of 25.0A per secondary.

Part Context

The F-28U belongs to Triad Magnetics' series of industrial power transformers. It is designed for heavy-duty applications where reliability and safety are paramount. The chassis mount design facilitates easy installation into equipment enclosures. The product line emphasizes high isolation capabilities and robust construction for consistent performance in industrial settings.

Replacement Considerations

Consult official Triad Magnetics documentation for verified substitute part numbers. Ensure any replacement maintains identical voltage ratings, current capacities, and isolation levels. Verify mechanical compatibility regarding chassis mounting and lead types.
