Product Detailed Parameters
- Description：PWR XFMR LAMINATED 7.5VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：2.5V
- Current - Output (Max)：3A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：7.5VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：71.45mm L x 41.28mm W
- Height - Seated (Max)：41.28mm
- Voltage - Isolation：1500Vrms
- Weight：0.68 lb (308.44 g)
Download product information
Overview

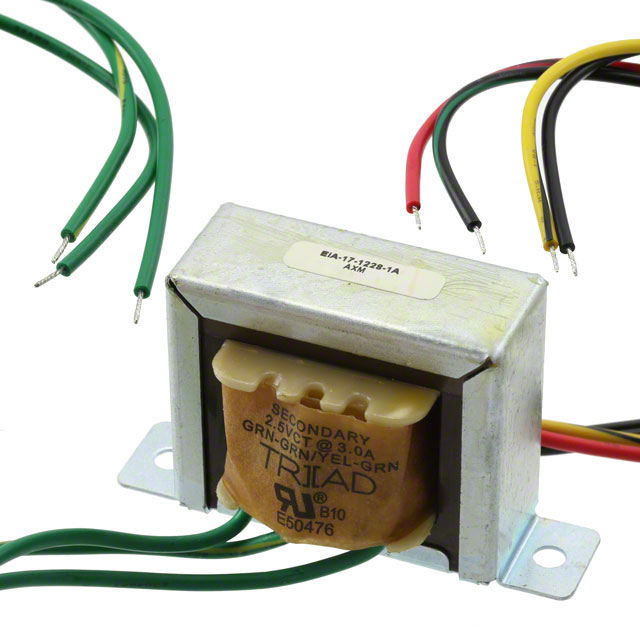

The Triad Magnetics F-301X is an industrial control power transformer designed for chassis mounting. It features a dual primary winding configuration supporting 115 VAC and 230 VAC input voltages, providing a single secondary output of 2.5 V at 3 A. The unit has a power rating of 7.5 VA and utilizes wire leads for termination. Physical dimensions are 1.63 inches in length, 2.81 inches in width, and 1.63 inches in height, with a unit weight of 431 grams.
Feature Summary
- Dual primary winding design enables compatibility with both 115 VAC and 230 VAC supply lines.
- Chassis mount construction facilitates secure installation within industrial equipment enclosures.
- Wire lead termination allows for direct connection to circuit boards or terminal blocks.
Applications
- Industrial control panel power supplies
- Equipment requiring low-voltage step-down conversion
- Transformer, rectifier, or filter circuits
Procurement Notes
Verify that the required input voltage matches the dual primary specification of 115/230 VAC. Confirm that the mechanical mounting space accommodates the specified chassis dimensions. Ensure the load current does not exceed the 3 A secondary rating. Check for compliance with specific regional safety certifications if applicable to the end application environment.
Selection Notes
Select this model when a compact, chassis-mounted solution is needed for stepping down standard line voltages to a low 2.5 V level. Consider the 7.5 VA power limit to ensure adequate capacity for the target circuit. Evaluate the physical footprint against available enclosure space. Compare against other F-series models if different voltage or current ratings are required.
Part Context
The F-301X belongs to the Triad Magnetics F series of industrial control transformers. This series provides laminated core power transformers suitable for general industrial applications. The component serves as a foundational element in power distribution systems where isolation and voltage transformation are necessary for downstream electronic components.
Replacement Considerations
No public confirmed substitute part numbers are documented in the provided source material.
