F-3115X

Overview

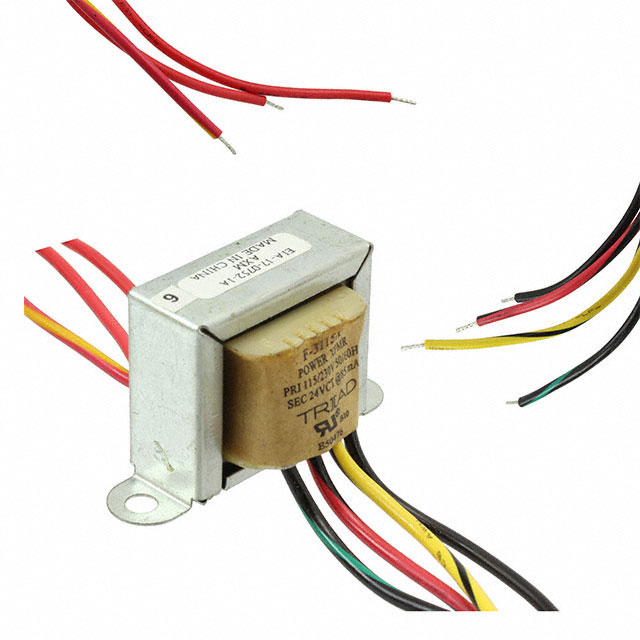

The Triad Magnetics F-3115X is a laminated core industrial power transformer designed for chassis mounting with wire leads. It features a dual primary winding configuration supporting 115 VAC and 230 VAC input voltages, providing flexibility for global deployment. The unit delivers a secondary output of 24.0 VCT at a maximum current of 0.085 A (85 mA), resulting in a total power rating of 2.04 VA. Physical dimensions are 1.38 inches in length, 2.06 inches in width, and 1.19 inches in height, weighing approximately 136 grams. The component operates within a temperature range of 0°C to +130°C.

Feature Summary

• Dual primary winding design accommodates both 115 VAC and 230 VAC input sources
• Chassis mount construction with integrated flanges and wire leads for secure installation
• Laminated core architecture ensures efficient power transfer in industrial control environments

Applications

• Industrial control panel power supplies
• Electronic equipment requiring isolated low-voltage DC conversion
• Instrumentation systems needing stable 24V AC reference

Procurement Notes

Verify the specific voltage configuration required for your application, as the F-3115X supports dual primary inputs. Confirm that the chassis mounting style and wire lead termination meet your enclosure design constraints. Ensure the 2.04 VA power rating sufficiently covers the load requirements of your downstream circuitry. Cross-reference the physical dimensions against available space in the target assembly to guarantee proper fitment.

Selection Notes

Select this model when a compact, chassis-mounted solution is needed for converting standard line voltages to a regulated 24V AC supply. The dual primary capability simplifies inventory management for products sold in multiple regions. Consider the thermal operating limits and physical size constraints before finalizing the design. This component is suitable for applications where moderate isolation and reliable performance are prioritized over high-power delivery.

Part Context

The F-3115X belongs to the Triad Magnetics F series of industrial control transformers. This series is characterized by robust laminated core construction and versatile mounting options. The F-3115X specifically addresses the need for low-power, isolated power sources in confined industrial spaces. Its design aligns with standard industry practices for control panel integration, offering a balance between electrical performance and mechanical simplicity.

Replacement Considerations

Direct substitutes may include other Triad Magnetics models within the F series that match the 24V CT secondary specification and similar power ratings. Verify compatibility regarding primary voltage support and physical mounting dimensions before substitution.

FAQ

Does the F-3115X support both 115V and 230V inputs?

Yes, the transformer features a dual primary winding configuration that allows operation at either 115 VAC or 230 VAC.

What is the maximum secondary current rating?

The maximum secondary current rating is 0.085 Amperes (85 mA).
