Product Detailed Parameters
- Description：PWR XFMR LAMINATED 4.8VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：24V
- Current - Output (Max)：200mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：4.8VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：60.32mm L x 38.10mm W
- Height - Seated (Max)：34.93mm
- Voltage - Isolation：1500Vrms
- Weight：0.45 lb (204.12 g)
Download product information
Overview

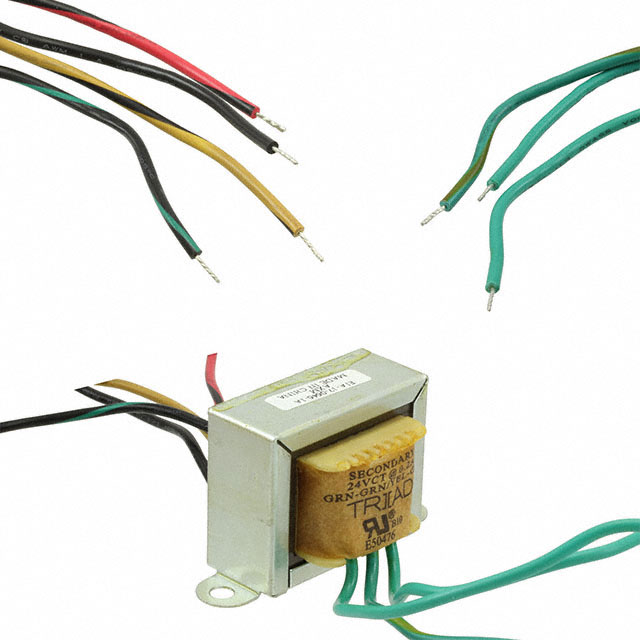

The Triad Magnetics F-3116X is a laminated core power transformer designed for chassis mounting with wire lead terminals. It features a dual primary winding configuration supporting 115 VAC and 230 VAC input voltages, ensuring compatibility with standard global power distributions. The single secondary output provides 24 VAC at a current rating of 200 mA. With a power rating of 4.8 VA and operation across 50 Hz and 60 Hz frequencies, this component offers reliable voltage transformation for industrial control applications requiring compact, potted construction.
Feature Summary
- Dual primary winding design enables flexible connection to 115 VAC or 230 VAC power sources
- Potted construction provides environmental protection and mechanical stability for chassis installation
- Single secondary output delivers isolated 24 VAC power for downstream circuitry
Applications
- Industrial control panel power supplies
- Commercial equipment internal power distribution
- General purpose AC to AC voltage transformation in enclosed systems
Procurement Notes
Verify the specific datasheet revision and manufacturer part number accuracy before ordering. Confirm that the 24 VAC secondary specification matches the target application requirements. Ensure chassis mounting dimensions and terminal wire lengths are compatible with the enclosure design. Check RoHS compliance status if required by project specifications. Validate frequency range support for the intended operating environment.
Selection Notes
Select this model when a 4.8 VA capacity is sufficient for the load. The dual primary feature simplifies inventory management for global deployments. Consider the physical size constraints as it requires chassis mounting space. Verify that the wire lead termination method aligns with the assembly process. Ensure the 24 VAC output meets the voltage tolerance needs of the connected components.
Part Context
This component belongs to the Triad Magnetics F series of industrial control transformers. These units are characterized by their robust laminated core construction and potted epoxy encapsulation. The series is engineered for durability in demanding environments, offering consistent performance across varying temperature ranges. The F-3116X specifically targets applications needing reliable step-down transformation from standard mains voltages.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
